A Complete Guide for Modern Manufacturing

In today’s high-precision and high-volume manufacturing environment, fully automated grinding lines are becoming essential for improving productivity, quality, and competitiveness. Whether producing automotive components, bearings, hydraulic parts, or new-energy equipment components, automated grinding systems help manufacturers achieve stable, repeatable, and cost-efficient results.

This guide explains the key components, technologies, and steps required to build a fully automated grinding line from the ground up.

1. Start with the Right Grinding Machines

A fully automated line begins with selecting machines capable of integration. Common choices include:

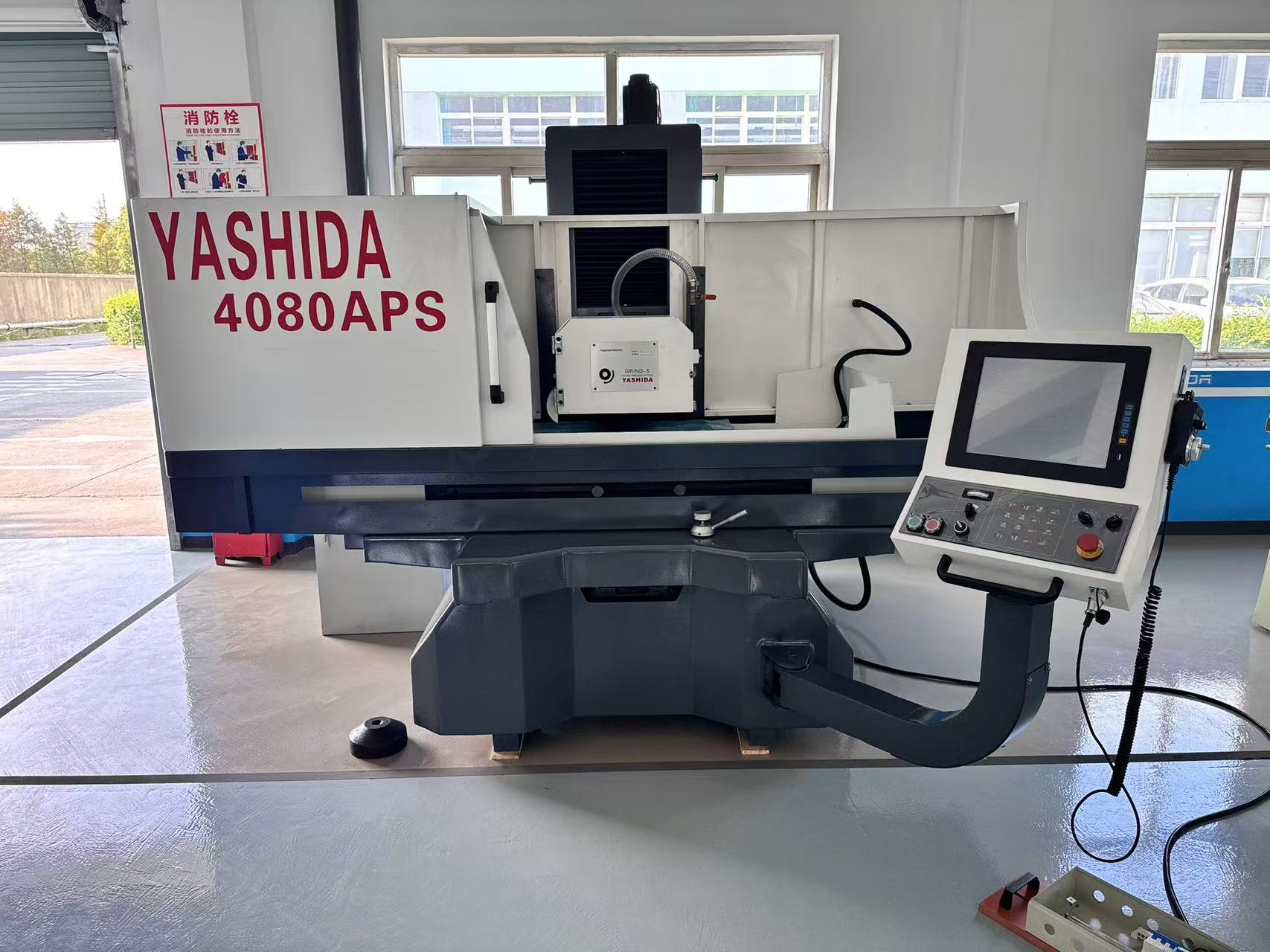

• CNC surface grinders

Used for precision flat-surface finishing, mold components, battery equipment parts, and plate-type workpieces.

• CNC Centerless Grinders

Ideal for mass production of cylindrical components such as shafts, pins, rods, and bearing rollers.

When choosing grinding machines, ensure they support automation:

• Servo-driven feed systems

• Programmable CNC control

• Automatic wheel dressing

• Digital communication interfaces (EtherCAT, OPC-UA, etc.)

• Stable mechanical structure for long-term precision

Brands like YASHIDA provide automation-ready CNC surface and centerless grinders with high rigidity, micron-level accuracy, and robot-compatible design.

2. Integrate Robotic Loading and Unloading Systems

Robots are the core of automated grinding lines. They replace manual handling and guarantee continuous, consistent production.

Common Robotic Systems Include:

• Articulated robotic arms for flexible loading/unloading

• Gantry robots for high-speed linear transfer

• SCARA robots for small components

• Collaborative robots (cobots) for compact setups

Robots should be equipped with:

• Custom grippers (magnetic, pneumatic, mechanical)

• Workpiece position detection

• Collision protection

• Smart path programming

A robot-assisted line can operate 24/7 with minimal human supervision.

3. Use Smart Feeding and Sorting Systems

Automation requires a stable material supply system. Depending on the part type, options include:

• Vibratory bowl feeders

• Conveyor-based feeding systems

• Rotary indexing tables

• Tray stacking and destacking units

• Vision-guided sorting modules

These systems ensure parts are correctly oriented and consistently delivered to the grinder and robot.

4. Add In-Line Measurement and Compensation

The true power of automation lies in closed-loop precision control.
This means the system measures a part, analyzes deviation, and automatically compensates in real time.

Recommended Measurement Tools:

• Laser micrometers

• Contact probes

• Online diameter gauges

• 3D vision inspection

• Surface roughness testers (optional)

The measurement system communicates with the CNC controller to:

• Adjust grinding position

• Compensate wheel wear

• Ensure consistent tolerances during long production runs

This dramatically reduces scrap and stabilizes quality.

5. Add Automatic Wheel Dressing and Compensation

Automated grinding lines must maintain wheel sharpness and dimensional accuracy without operator intervention.

Automatic dressing ensures:

• Constant grinding performance

• Stable surface finish

• Controlled wheel geometry

• Better heat management

CNC dressing systems further allow programmable dressing intervals, dressing depth, and wheel compensation.

6. Implement a Central Control System

A fully automated grinding line requires a unified control platform capable of monitoring and coordinating every subsystem.

Typical Features:

• Production cycle management

• Real-time machine status

• Tool wear monitoring

• Robot communication

• Quality inspection data integration

• Alarm and error logging

• Remote diagnostics

The control system connects all equipment through industrial protocols (EtherCAT, Ethernet/IP, Profinet).

7. Ensure Safety, Reliability, and Easy Maintenance

Automation involves multiple moving components. Safety features should include:

• Enclosed robotic work cells

• Light curtains and safety scanners

• Emergency stop systems

• Overload protection

• Predictive maintenance sensors

Ease of maintenance ensures the line operates with minimal downtime.

8. Optimize for 24/7 Unmanned Production

Once all modules are integrated, the system can run continuously.
Key optimizations include:

• Large-capacity material feeders

• Automatic lubrication systems

• Predictive maintenance software

• Remote monitoring via IoT

• Intelligent production scheduling

This transforms the grinding line into a high-efficiency, unmanned manufacturing system.

Conclusion: Automation Is the Future of Precision Grinding

Building a fully automated grinding line requires thoughtful integration of:

• CNC grinders

• Robotic systems

• Smart feeding

• In-line measurement

• Centralized control

• Safety and predictive maintenance

With the support of advanced grinding machine manufacturers like YASHIDA, companies can achieve:

• Lower labor costs

• Higher productivity

• Stable micron-level precision

• Lower scrap rates

• 24/7 continuous production

Automation is no longer optional—it is the future of competitive manufacturing.
