Understanding the Three Main Types of Centerless Grinding

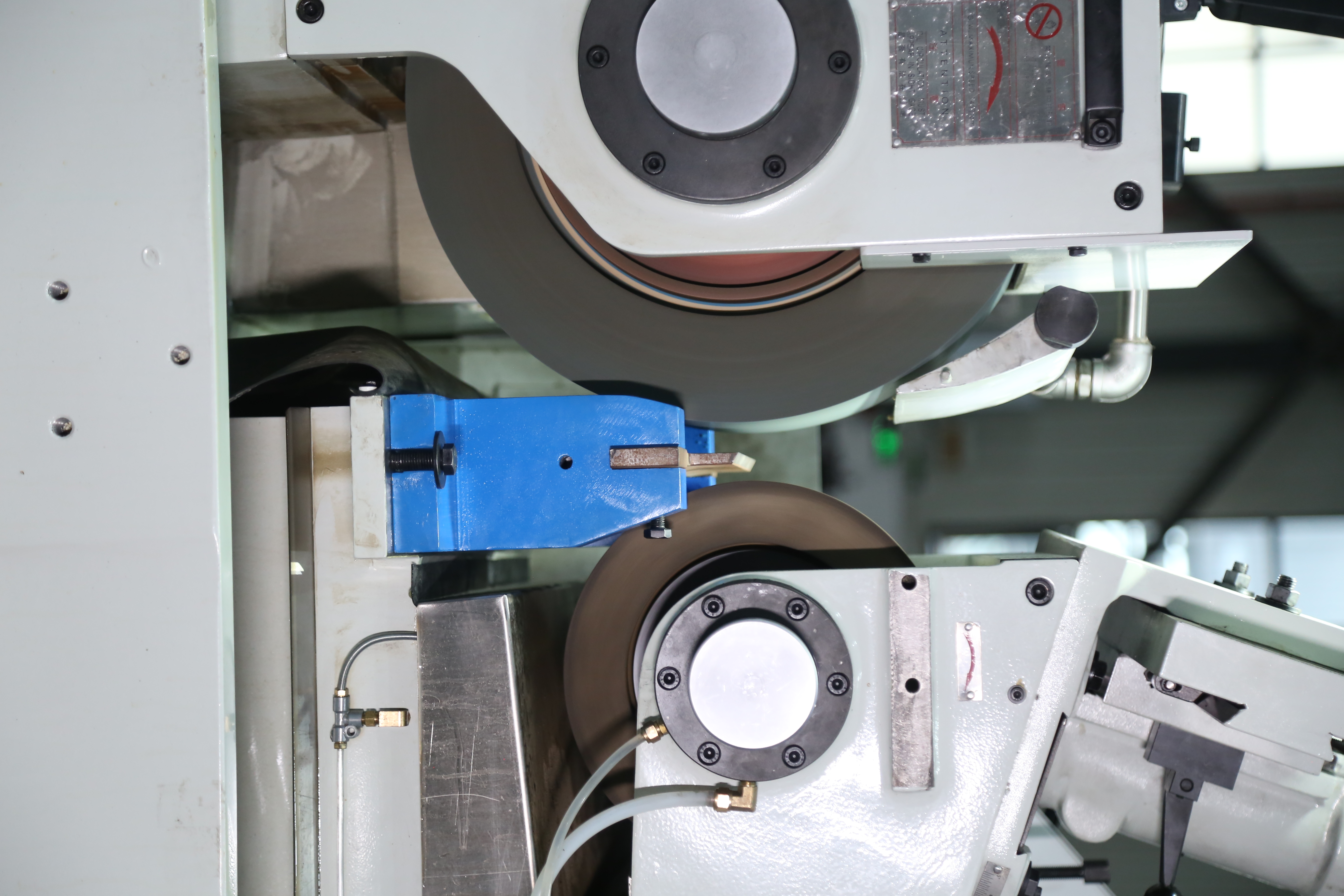

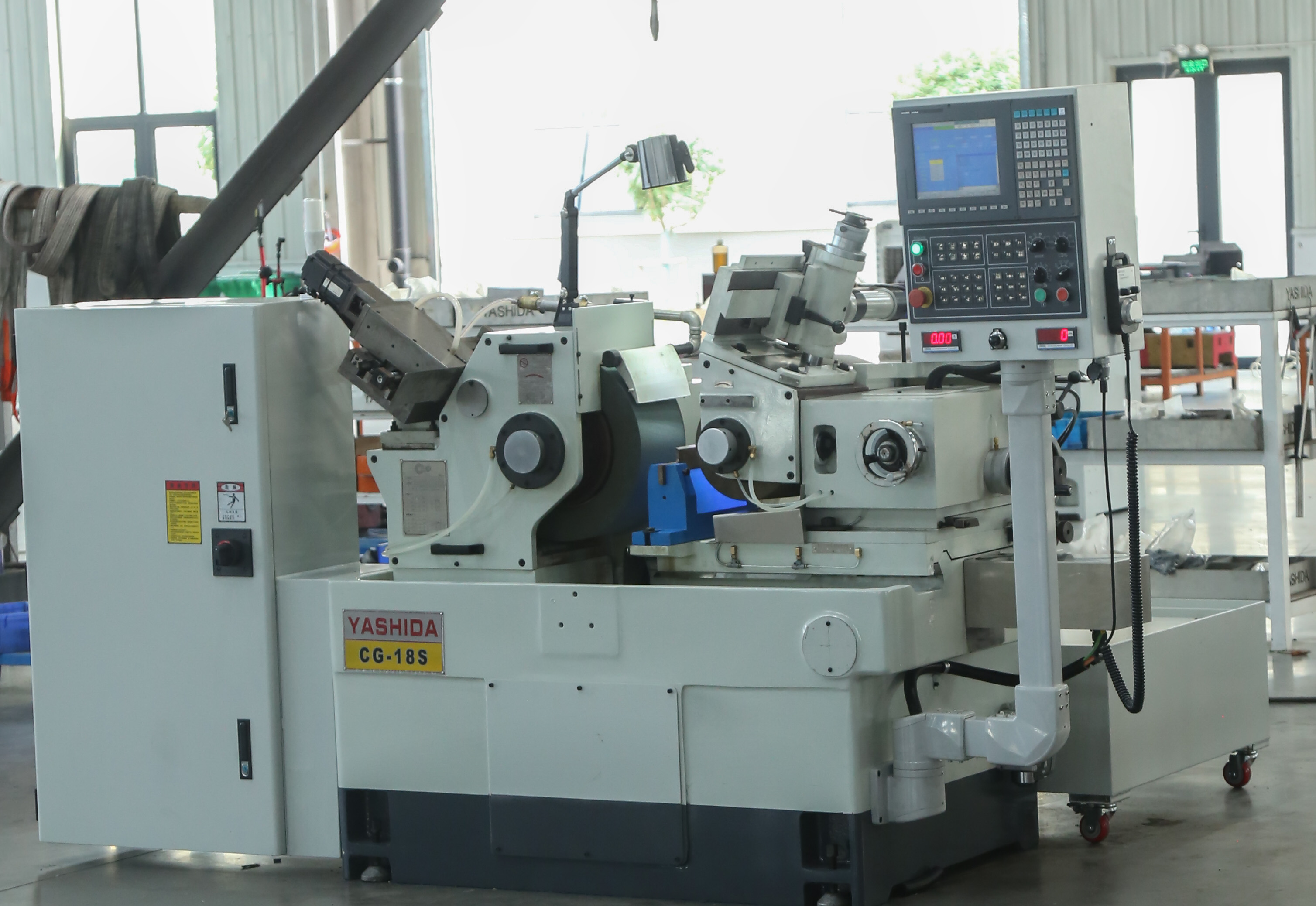

Centerless grinding is a highly efficient machining process used to produce precision cylindrical components without the need for centers or chucks. Instead of being fixed in place, the workpiece is supported by a grinding wheel, a regulating wheel, and a work rest blade. Depending on the shape of the part, production volume, and accuracy requirements, centerless grinding is generally classified into three main types: through-feed grinding, in-feed (plunge) grinding, and end-feed grinding. Each method serves a distinct purpose and offers unique advantages.

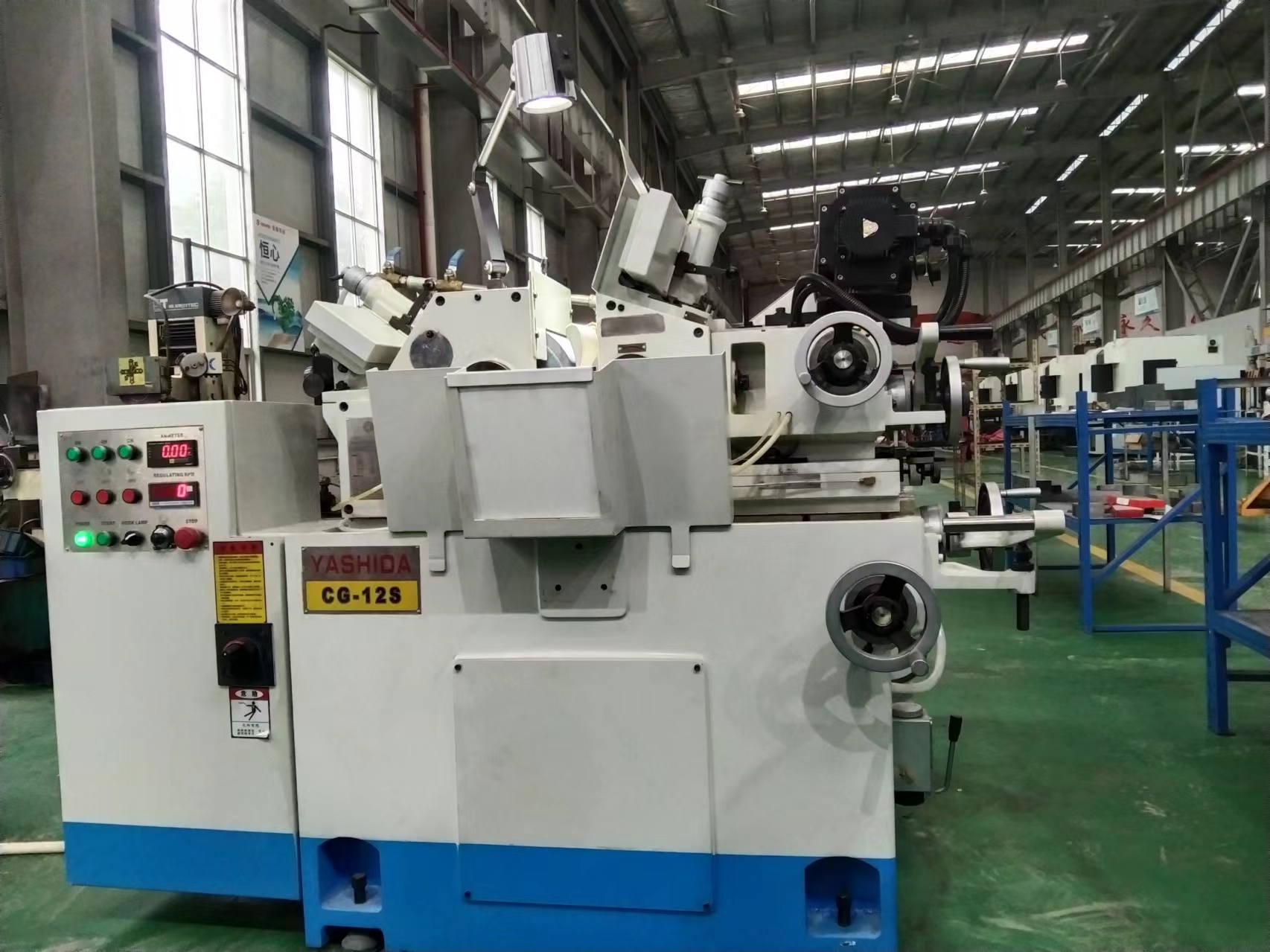

Through-Feed Grinding: High Efficiency for Straight Cylindrical Parts

Through-feed grinding is the most commonly used form of centerless grinding, especially for high-volume production. In this process, the workpiece is continuously fed between the grinding wheel and the regulating wheel in a straight line. The regulating wheel is angled slightly to create an axial force that pushes the part through the machine.

This method is ideal for parts with a consistent diameter and no shoulders or complex profiles, such as shafts, pins, tubes, and rollers. Through-feed grinding offers excellent productivity, consistent quality, and minimal setup time, making it well suited for mass production environments.

In-Feed Grinding: Precision for Complex Shapes and Shoulders

In-feed grinding, also known as plunge grinding, is used when parts cannot pass completely through the grinding zone. In this method, the workpiece is positioned between the wheels and held in place while the grinding wheel moves radially inward to remove material.

This technique is particularly suitable for components with steps, shoulders, grooves, or varying diameters. Because the workpiece remains stationary during grinding, in-feed grinding allows precise control over complex geometries. Although cycle times are typically longer than through-feed grinding, the method delivers high accuracy for intricate part designs.

End-Feed Grinding: Accurate Control for Tapered and Conical Parts

End-feed grinding is commonly applied to parts with tapered or conical shapes. In this process, the workpiece is fed axially into the grinding area until it contacts a fixed stop. The regulating wheel controls the rotation of the workpiece while the grinding wheel performs the material removal.

End-feed grinding allows for precise control of part length and taper angle, making it suitable for applications such as valve components, tapered pins, and specific hydraulic parts. While less common than through-feed and in-feed grinding, it is essential for certain specialized geometries.

Choosing the Right Centerless Grinding Method

Selecting the appropriate type of centerless grinding depends on several factors, including part geometry, tolerance requirements, production volume, and material properties. Through-feed grinding maximizes productivity for simple shapes, in-feed grinding enables complex profiles, and end-feed grinding offers accuracy for tapered components.

Understanding these differences helps manufacturers optimize their grinding processes, reduce setup time, and achieve consistent, high-quality results.

Conclusion

Through-feed, in-feed, and end-feed grinding each play a vital role in centerless grinding applications. By choosing the correct method for a given part, manufacturers can balance efficiency, precision, and cost-effectiveness. As demand for high-precision cylindrical components continues to grow, mastering these centerless grinding techniques becomes increasingly important for modern manufacturing operations.
