How Centerless Grinding Achieves High Roundness and Straightness

2025-12-24 02:57:50

Introduction: Why Roundness and Straightness Matter

In precision manufacturing, roundness and straightness are critical quality indicators for cylindrical components. Parts such as shafts, bearing rollers, hydraulic pins, and medical rods demand extremely tight tolerances to ensure smooth motion, proper load distribution, and long service life. Centerless grinding has become one of the most reliable processes for achieving superior roundness and straightness, especially in high-volume production.

Unlike traditional grinding methods that rely on centers or chucks, centerless grinding uses a unique support and control mechanism that inherently promotes geometric accuracy.

The Fundamental Principle of Centerless Grinding

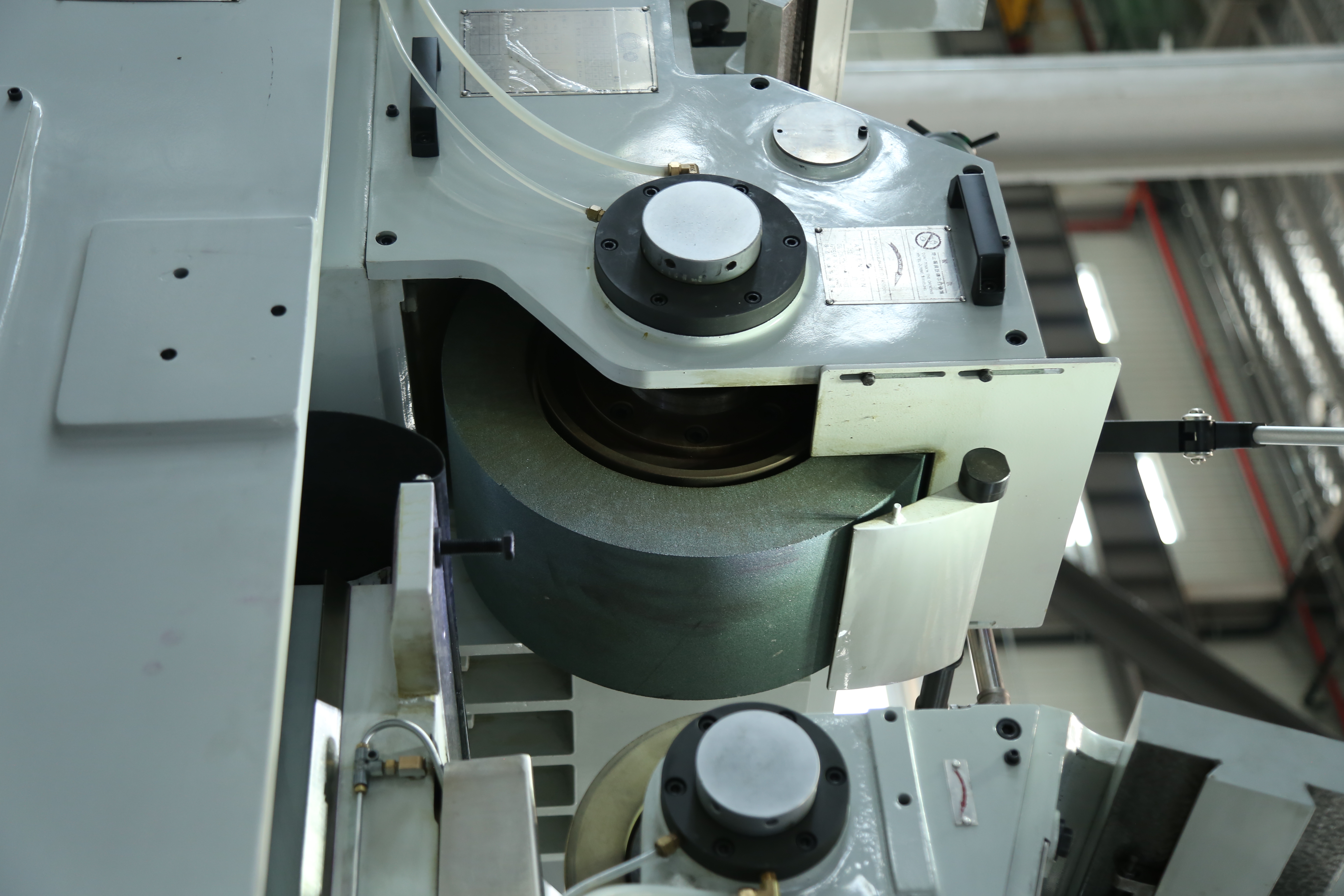

Centerless grinding works by supporting the workpiece between a grinding wheel, a regulating wheel, and a workrest blade. The grinding wheel removes material, while the regulating wheel controls the rotation speed and axial movement of the workpiece. The workrest blade supports the part at a precise height relative to the wheel centerline.

This three-point support system eliminates errors caused by centering, clamping distortion, or spindle misalignment, which are common issues in center-type grinding. As a result, the workpiece naturally stabilizes during grinding, improving both roundness and straightness.

Self-Centering Effect and Improved Roundness

One of the key reasons centerless grinding achieves excellent roundness is the self-centering effect. As the workpiece rotates between the grinding and regulating wheels, any high spots are continuously removed by the grinding wheel. The regulating wheel maintains constant rotational speed, preventing irregular motion.

Over successive rotations, the workpiece gradually conforms to a true circular shape. This automatic correction mechanism allows centerless grinders to achieve roundness levels as tight as 0.002 mm or better under proper conditions.

Controlled Axial Movement for Superior Straightness

Straightness is largely influenced by how the workpiece moves axially during grinding. In through-feed centerless grinding, the regulating wheel is angled slightly to guide the workpiece smoothly along the grinding zone. This controlled, linear movement ensures uniform material removal along the entire length of the part.

Stable feed motion minimizes bending forces and prevents taper or barrel shapes. With precise adjustment of regulating wheel angle and blade height, centerless grinding consistently produces excellent straightness even on long, slender components.

The Importance of Blade Height and Machine Stability

Blade height plays a critical role in balancing roundness and straightness. When the workpiece center is positioned slightly above the wheel centerline, rotational stability is improved, reducing lobing and vibration. Incorrect blade height can introduce geometric errors that affect both roundness and straightness.

In addition, machine rigidity and vibration control are essential. A rigid machine bed, precision guideways, and high-quality bearings ensure that the grinding forces remain stable throughout the process, further enhancing geometric accuracy.

Consistent Results Through CNC and Servo Control

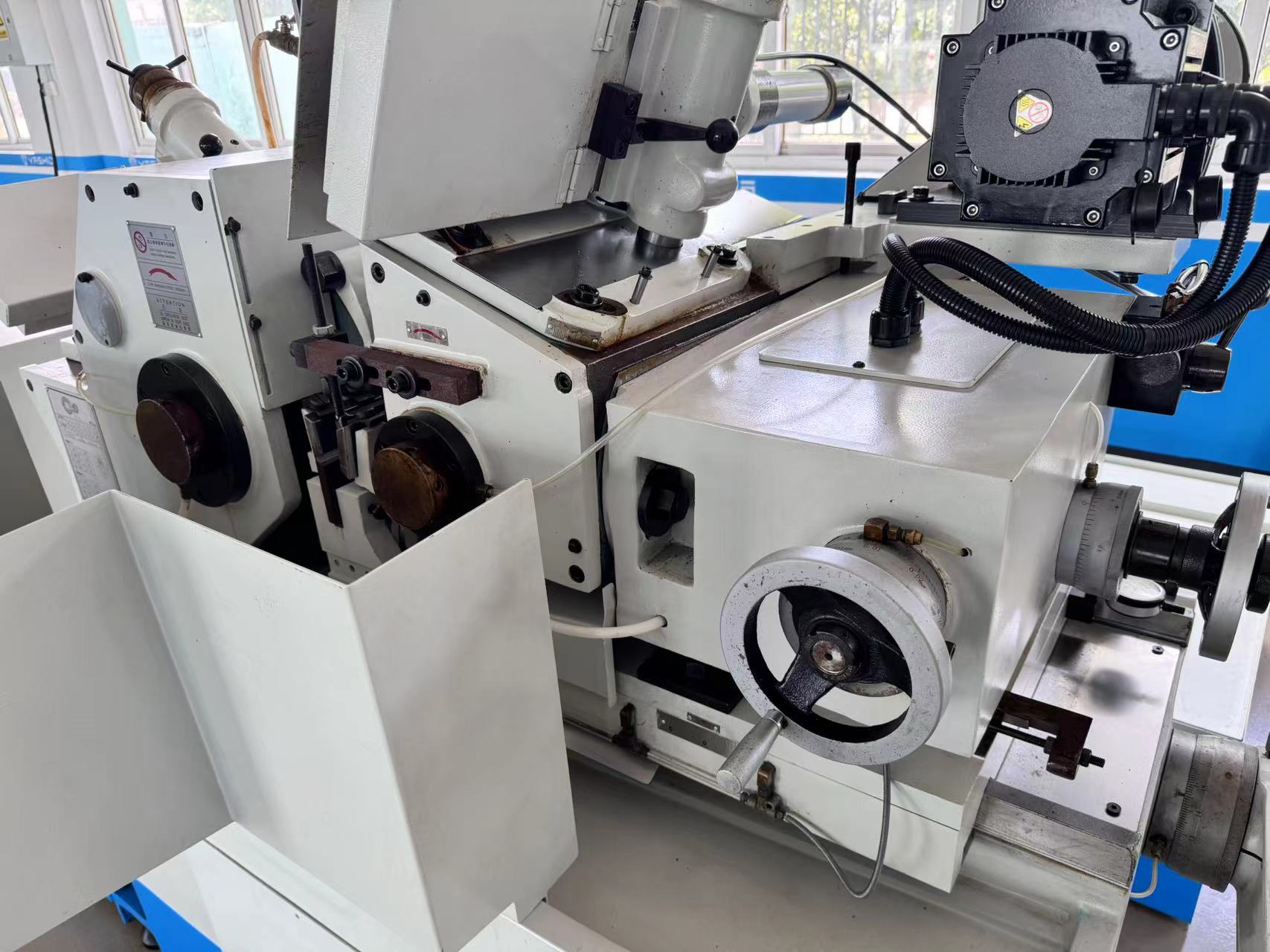

Modern CNC centerless grinding machines equipped with servo-driven regulating wheels provide even greater control over speed, feed rate, and compensation. Servo systems maintain stable rotation under varying loads and enable micro-adjustments during grinding.

This level of control significantly improves consistency across large production batches, ensuring that every part meets strict roundness and straightness requirements.

Conclusion

Centerless grinding achieves high roundness and straightness through its unique support mechanism, self-centering behavior, controlled axial movement, and machine stability. When combined with proper setup and modern CNC servo technology, it becomes one of the most effective grinding solutions for precision cylindrical components.

For manufacturers seeking reliable accuracy, productivity, and repeatability, centerless grinding remains an indispensable process in modern machining.
