Surface Grinding Solutions for Mold and Die Manufacturing

2025-12-29 09:20:59

Introduction: Why Surface Grinding Is Critical in Mold and Die Making

Mold and die manufacturing demands extremely high precision, surface quality, and dimensional stability. Components such as mold bases, inserts, plates, and sliders must meet strict flatness and parallelism requirements to ensure proper assembly, smooth operation, and long service life.

Surface grinding plays a vital role in achieving these requirements. It is one of the final and most critical processes in mold and die production, directly affecting product quality and production efficiency.

Precision Requirements in Mold and Die Components

Mold and die components often require micron-level flatness and parallelism. Even small deviations can lead to mold misalignment, uneven clamping force, premature wear, or defects in molded parts.

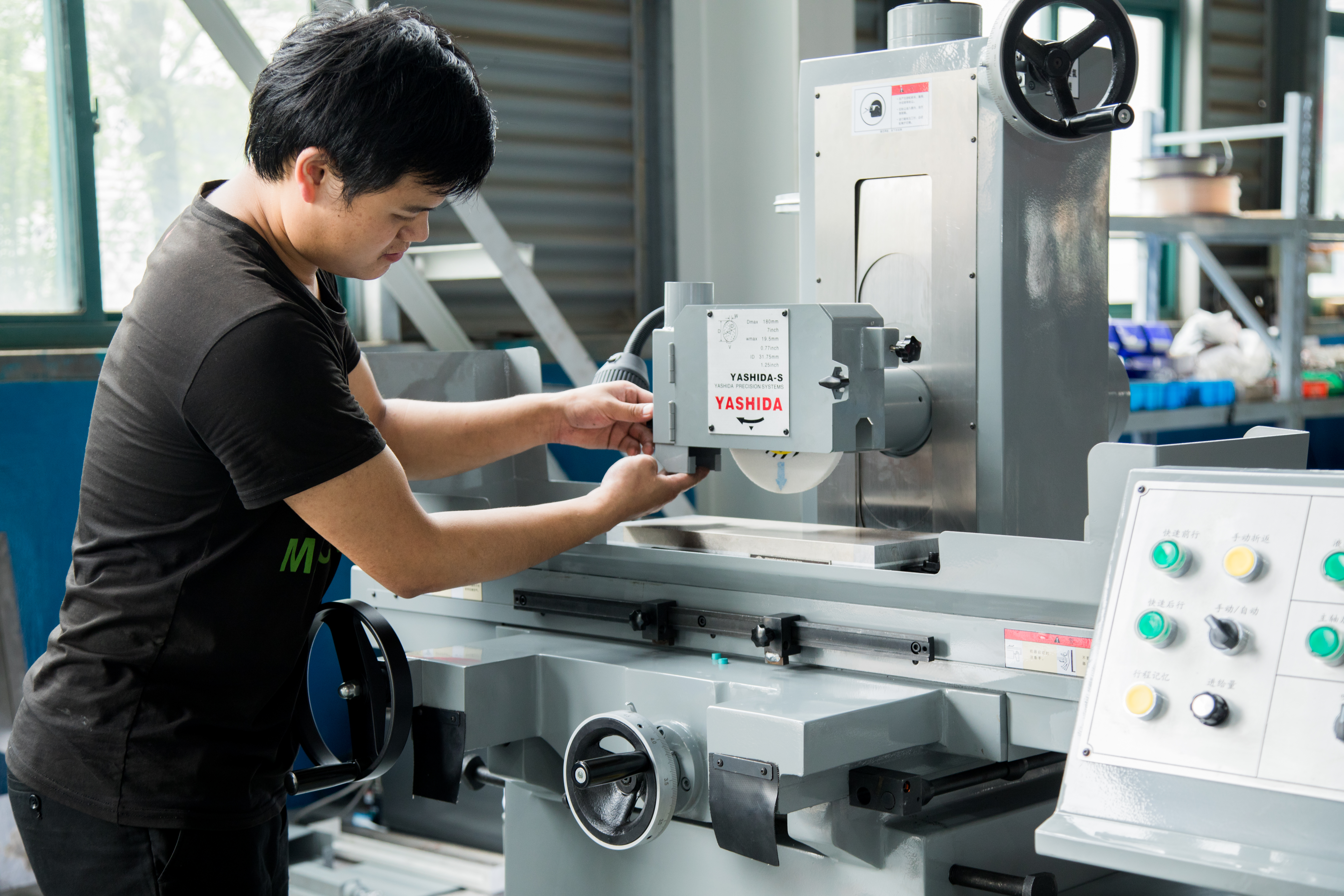

surface grinding machines provide controlled material removal and excellent repeatability, making them ideal for finishing hardened steels and precision plates commonly used in mold manufacturing.

Surface Grinding Applications in Mold and Die Manufacturing

surface grinders are widely used to process mold bases, core inserts, cavity plates, ejector plates, and wear plates. These parts often undergo heat treatment, which can cause distortion. Surface grinding corrects these deformations while maintaining tight tolerances.

For complex molds, surface grinding ensures accurate reference surfaces, which are essential for subsequent machining and assembly operations.

Achieving High Surface Finish and Dimensional Accuracy

A high-quality surface finish is crucial for mold performance. Poor surface quality can increase friction, cause sticking issues, and reduce mold life.

Advanced Surface Grinding Solutions offer smooth table movement, stable spindle performance, and precise infeed control. These factors enable fine surface finishes and consistent dimensional accuracy, even on hardened or difficult-to-machine materials.

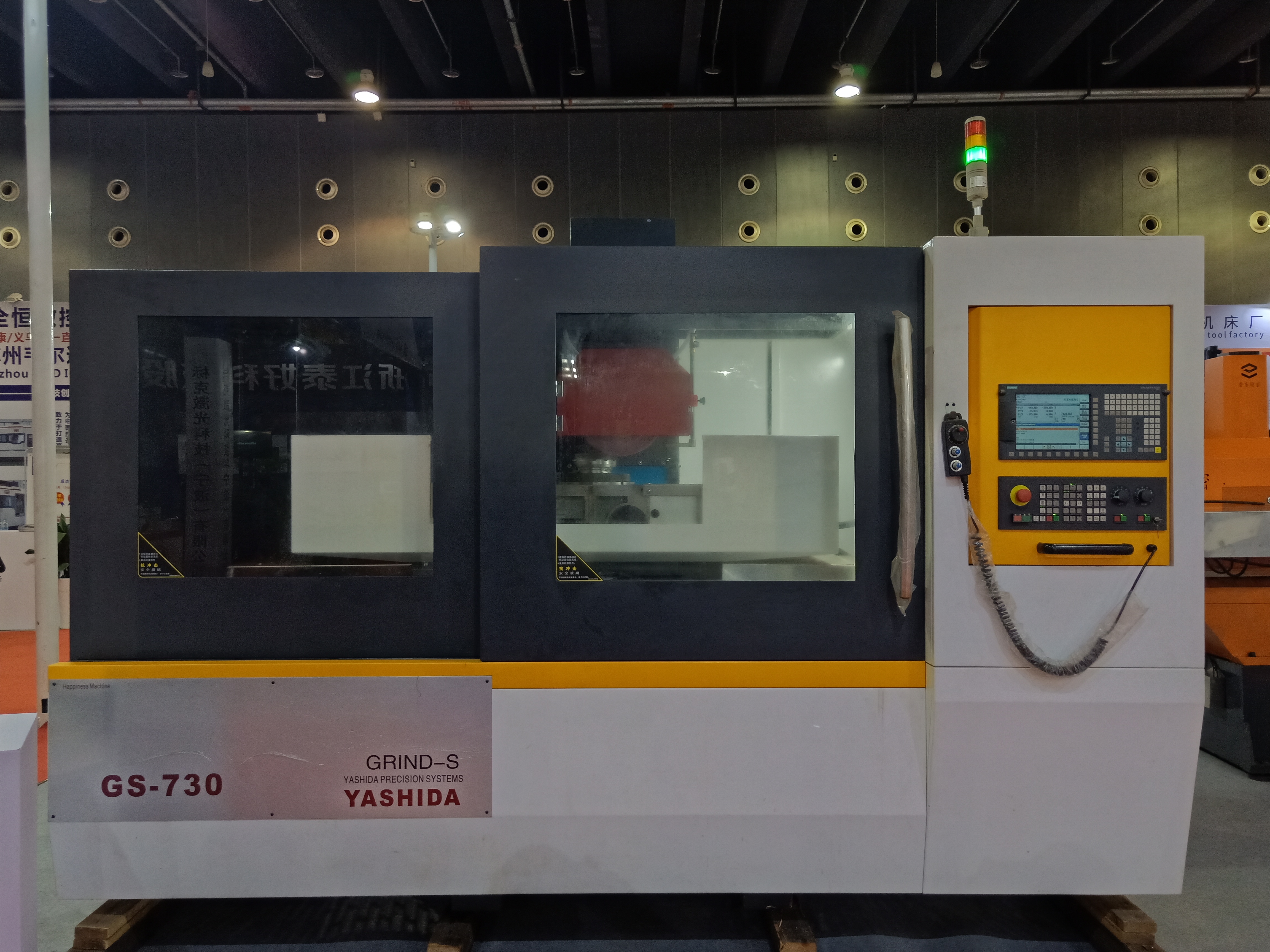

CNC surface grinders for Modern Mold Shops

As mold designs become more complex and tolerance requirements tighten, CNC surface grinders are increasingly adopted in modern mold shops. CNC control allows precise programming of grinding cycles, automatic compensation, and consistent results across multiple parts.

This reduces reliance on operator experience and improves productivity, especially in high-mix, low-volume mold manufacturing environments.

Improving Efficiency and Reducing Rework

Surface grinding improves overall manufacturing efficiency by minimizing rework and scrap. Accurate grinding ensures proper part fit, reducing the need for manual correction during assembly.

With reliable surface grinding solutions, mold manufacturers can shorten lead times, maintain consistent quality, and meet demanding customer delivery schedules.

Conclusion

Surface grinding is a cornerstone process in mold and die manufacturing. By delivering high flatness, excellent surface finish, and dimensional consistency, surface grinding solutions enable mold makers to produce high-quality tools with long service life.

Investing in the right surface grinding technology is essential for any mold shop aiming to improve quality, efficiency, and competitiveness in today’s precision manufacturing market.
