Hydrostatic vs Roller Guideways in Surface Grinders

2026-01-12 03:28:39

Introduction

Guideway design is one of the most critical factors influencing the performance of a surface grinder. It directly affects motion smoothness, positioning accuracy, vibration control, and long-term precision stability. Among the most widely used guideway types in modern surface grinders are hydrostatic guideways and roller guideways. Understanding the differences between these two systems is essential when selecting a machine for high-precision grinding applications.

How Hydrostatic Guideways Work

Hydrostatic guideways operate by introducing a pressurized oil film between the sliding surfaces of the guideway. This oil film completely separates the moving components, eliminating direct metal-to-metal contact. As a result, friction is extremely low and movement remains smooth even under heavy loads.

In surface grinding applications, hydrostatic guideways offer excellent vibration damping and superior motion stability. These characteristics make them particularly suitable for high-precision finishing, mold manufacturing, and applications requiring ultra-smooth surface finishes. The absence of mechanical contact also means minimal wear, allowing the machine to maintain accuracy over long periods of operation.

How Roller Guideways Work

Roller guideways rely on rolling elements, typically cylindrical rollers, positioned between hardened guideway rails. This rolling contact provides high rigidity and efficient load distribution, enabling fast positioning and high acceleration.

Surface grinders equipped with roller guideways are often favored in production environments where speed and throughput are critical. The high stiffness of roller guideways supports aggressive grinding cycles and improves responsiveness. However, because rolling elements are in direct contact with guide rails, vibration damping is generally lower compared to hydrostatic systems, especially during fine finishing operations.

Comparing Precision, Stability, and Maintenance

When comparing hydrostatic and roller guideways, the choice largely depends on application requirements. Hydrostatic guideways excel in smoothness, vibration suppression, and long-term accuracy retention, while roller guideways offer higher dynamic stiffness and faster motion.

Maintenance considerations also differ. Hydrostatic systems require stable oil supply and filtration but experience minimal mechanical wear. Roller guideways demand precise alignment and periodic inspection of rolling elements, as wear can gradually affect accuracy.

YASHIDA surface grinders are designed with a deep understanding of these trade-offs. Depending on the model and application focus, YASHIDA selects guideway solutions that best balance rigidity, precision, and long-term reliability.

YASHIDA Surface Grinders: Optimized Guideway Engineering

YASHIDA surface grinders integrate high-rigidity cast iron beds with carefully engineered guideway systems to ensure stable and repeatable motion. For high-precision applications, YASHIDA employs guideway designs that emphasize vibration control and smooth feed behavior, supporting consistent surface finishes and dimensional accuracy.

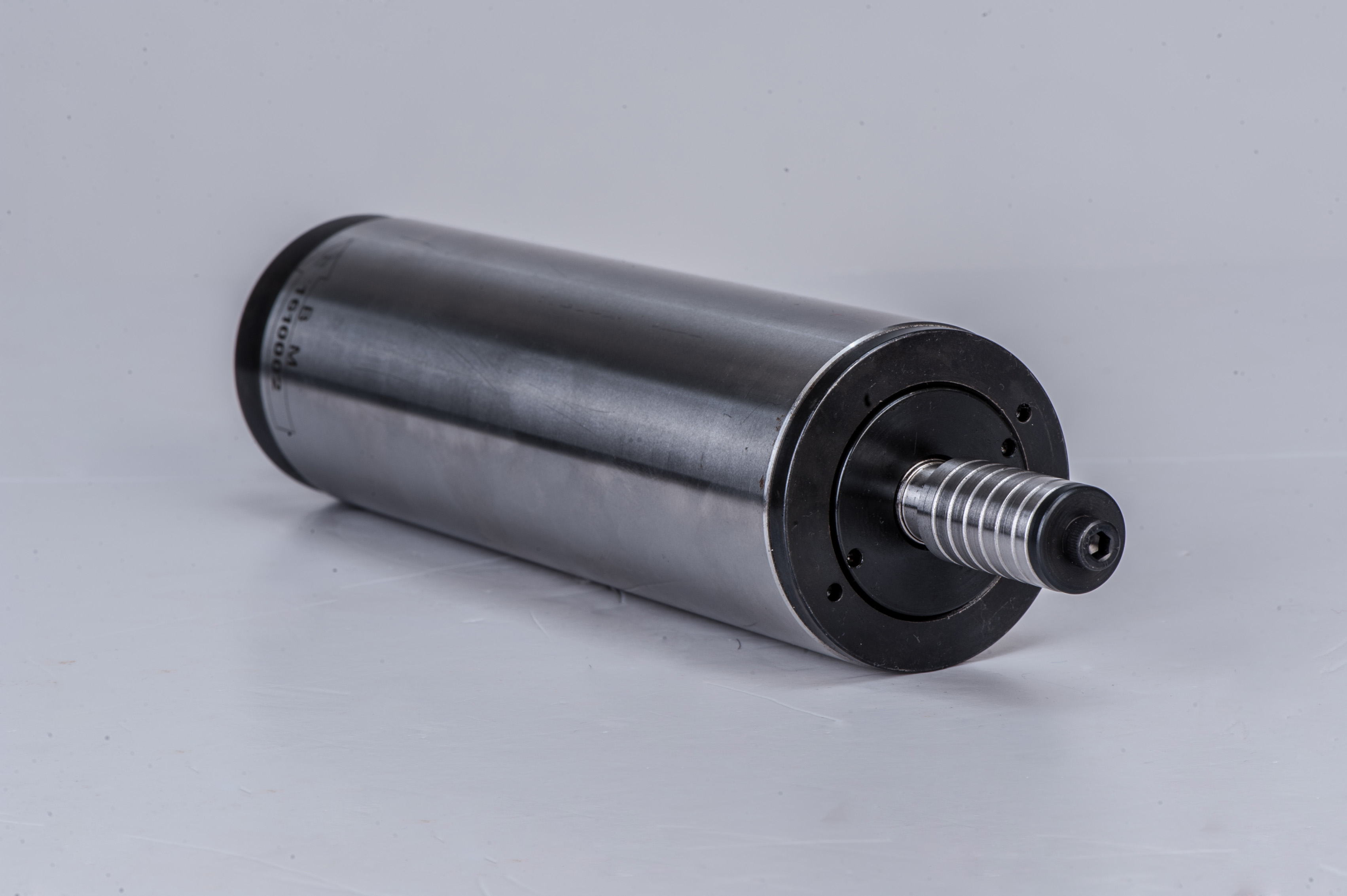

By combining premium guideway design with precision spindle systems and servo-driven axes, YASHIDA surface grinders deliver reliable performance across both precision machining and production grinding environments.

Conclusion

Both hydrostatic and roller guideways offer distinct advantages in surface grinding machines. The optimal choice depends on whether the priority is ultimate precision and surface quality or higher speed and productivity. Selecting a surface grinder with a well-matched guideway system—such as those found in YASHIDA surface grinders—ensures that machine performance aligns with production goals and delivers long-term value.
