What Are CNC Grinding Machine Solutions?

2026-01-24 22:51:28

What Are CNC Grinding Machine Solutions?

Precision is the backbone of modern manufacturing, where even the slightest deviation can compromise product performance, safety, and reliability. For industries ranging from aerospace to medical devices, achieving sub-micron tolerances on complex components is non-negotiable—and this is where CNC grinding machine solutions come into play. Far more than standalone machines, CNC (Computer Numerical Control) grinding solutions are integrated, end-to-end systems that combine advanced machinery, intelligent software, specialized tooling, and comprehensive support services to address specific manufacturing challenges. These solutions enable manufacturers to grind a wide array of materials—from superalloys and ceramics to composites—with unparalleled accuracy, consistency, and efficiency, making them indispensable in today’s competitive production landscape.

Core Components of CNC Grinding Solutions

A robust CNC grinding solution is built on four interconnected pillars:

1. CNC Grinding Machines

The hardware foundation varies by application:

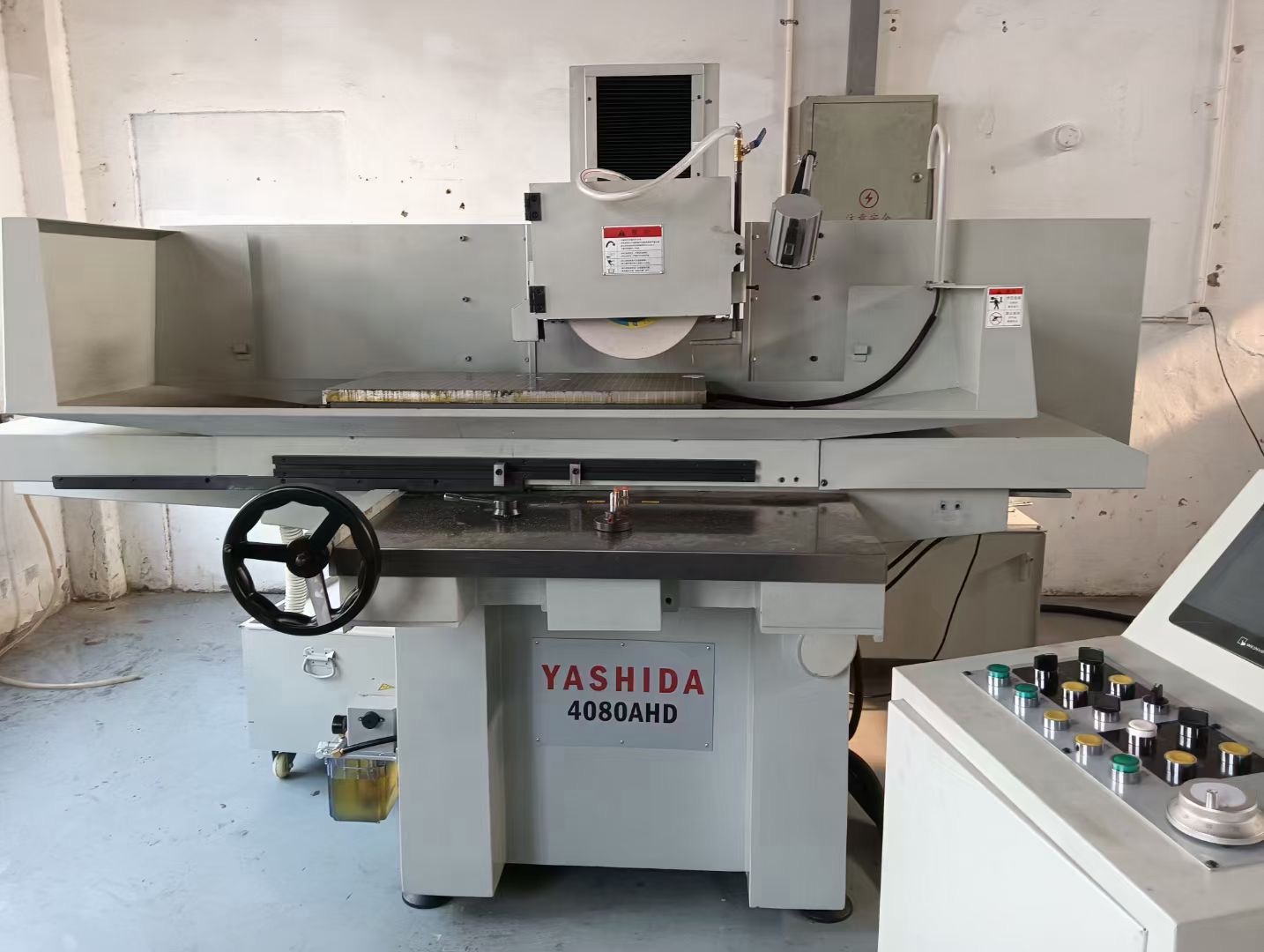

- **surface grinders**: Handle flat surfaces (e.g., mold plates).

- **Cylindrical grinders**: Shape round parts like camshafts or bearings.

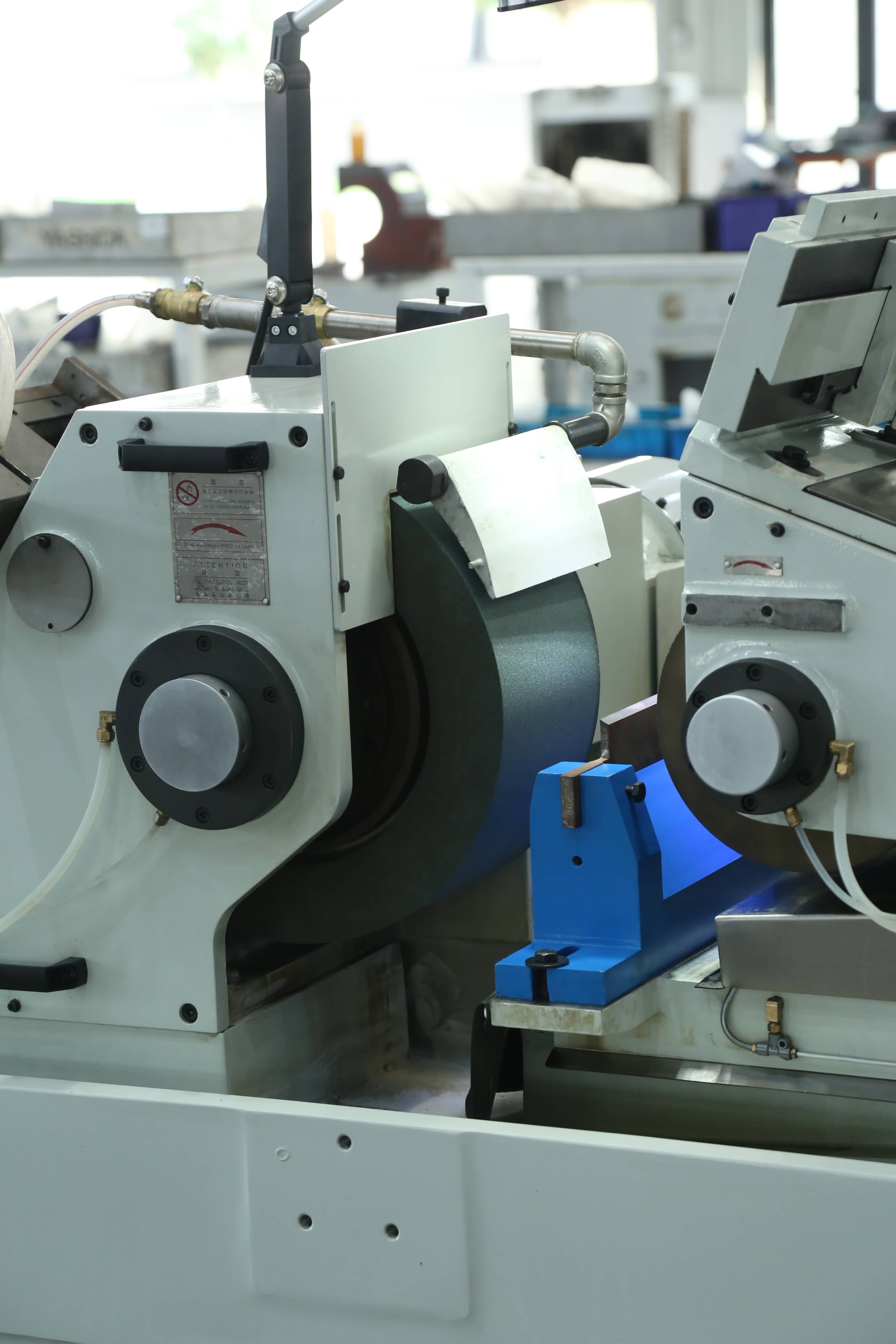

- **Centerless grinders**: High-volume grinding of small-diameter parts (e.g., automotive pins).

- **5-axis grinders**: Create complex 3D profiles (e.g., aerospace turbine blades).

- **Micro-grinders**: Process sub-millimeter components (e.g., medical needles).

Each machine type is engineered with precision spindles, linear guides, and servo motors to deliver repeatable results.

2. Intelligent Software

Software turns raw data into actionable insights:

- **CAD/CAM platforms**: Design parts digitally and generate optimized grinding paths (e.g., Siemens NX, Mastercam).

- **Simulation tools**: Validate paths to avoid collisions (e.g., Vericut), reducing setup time and material waste.

- **IoT-enabled analytics**: Monitor spindle speed, wheel wear, and temperature in real time to optimize processes and enable predictive maintenance.

3. Specialized Tooling & Consumables

Abrasives are tailored to material properties:

- **Diamond wheels**: Grind hard materials (carbide, ceramics).

- **CBN wheels**: High-speed grinding of steel components (e.g., gears).

- **Laser dressers**: Maintain wheel sharpness and shape for consistent surface finish.

4. Comprehensive Support Services

Providers offer installation, operator training, preventive maintenance, and aftermarket support. This includes calibration to keep machines within tolerance and rapid replacement parts for minimal downtime.

Key Types of CNC Grinding Solutions

Solutions are customized to address unique manufacturing needs:

1. High-Precision Micro-Grinding

For micro-components (e.g., surgical tools, semiconductor connectors), this solution uses ultra-fine abrasives and sub-micron positioning systems. It delivers surface finishes as smooth as Ra 0.02 μm and tolerances of ±0.1 μm—critical for medical devices where biocompatibility and functionality depend on precision.

2. Heavy-Duty Industrial Grinding

Designed for large, heavy parts (e.g., aerospace turbine disks, marine shafts), these solutions use robust grinders capable of handling parts weighing several tons. They feature high-power spindles and coolant systems to manage heat during prolonged grinding sessions.

3. Flexible Batch Grinding

Ideal for small-to-medium batches (e.g., custom gears), this solution uses quick-change tooling and intuitive software to reduce setup time between part types. It balances precision with agility, making it perfect for job shops.

4. Automated Grinding Cells

Integrated with robotic arms, vision systems, and conveyors, these cells enable lights-out manufacturing. Robots load/unload parts, vision systems inspect surface finish, and data analytics optimize processes—cutting labor costs by up to 60%.

Critical Applications Across Industries

CNC grinding solutions are ubiquitous in high-stakes sectors:

Aerospace

Turbine blades require 5-axis grinding to create complex airfoil profiles with tolerances of ±0.001 mm. This ensures optimal aerodynamic performance and fuel efficiency. CBN wheels are used to grind superalloys like Inconel, which resist high temperatures.

Automotive

Mass production of camshafts and crankshafts relies on cylindrical grinders with CNC control. These machines process 100+ parts per hour, maintaining consistent lobe dimensions to ensure smooth engine operation.

Medical Devices

Orthopedic implants (titanium hip stems) are ground to Ra 0.05 μm surface finish to reduce friction and wear in the body. Micro-grinders sharpen surgical needles to precise angles, ensuring minimal tissue damage during procedures.

Electronics

Semiconductor wafers are thinned to 100 μm using surface grinders with diamond wheels. This ensures uniform thickness for chip manufacturing, where even a 5 μm deviation can render a wafer useless.

Benefits of Adopting CNC Grinding Solutions

The value of these solutions extends beyond precision:

Unmatched Consistency

Automated processes eliminate human error, so every part is identical. For example, a CNC centerless grinder produces 10,000 automotive pins with ±0.002 mm tolerance—impossible with manual grinding.

Increased Productivity

Quick setup times and automated workflows boost output by 30–50%. Automated cells enable 24/7 operation, reducing time-to-market for critical components.

Versatility

Solutions handle diverse materials: from soft aluminum to hard tungsten carbide. This flexibility allows manufacturers to adapt to changing customer demands.

Cost Efficiency

Optimized grinding paths reduce scrap by up to 20%. Predictive maintenance minimizes unplanned downtime, and longer tool life (via laser dressing) cuts consumable costs.

Future Trends Shaping CNC Grinding Solutions

The next generation of solutions is driven by Industry 4.0 and advanced materials:

AI-Powered Optimization

AI algorithms analyze real-time data to adjust grinding parameters (e.g., wheel speed, feed rate) dynamically. This improves surface finish and extends tool life by 15%.

Sustainable Grinding

Eco-friendly abrasives (recycled diamond) and energy-efficient spindles reduce carbon footprints. Coolant recovery systems minimize waste, aligning with circular economy goals.

Collaborative Robotics

Cobots work alongside operators to load parts, reducing physical strain and increasing flexibility. They are easy to program, making them ideal for small-batch production.

Conclusion

CNC grinding machine solutions are more than tools—they are strategic assets that enable manufacturers to push the boundaries of precision and efficiency. From micro-medical devices to heavy aerospace components, these integrated systems deliver consistent results, reduce costs, and drive innovation. As industries continue to demand higher tolerances and faster production, CNC grinding solutions will remain at the forefront of modern manufacturing, shaping the products that power our world.

In short, CNC grinding solutions are the answer to the question: How do we make complex, precise parts at scale? The answer lies in integration—combining machinery, software, tooling, and support to create a system that is greater than the sum of its parts.

---
