Structural Characteristics and Performance Analysis of Surface Grinding Machines

2026-03-23 14:25:39

Introduction

surface grinding machines are machine tools used for grinding the surfaces of workpieces, primarily for grinding metals, non-metals, and cemented carbides.

Their working principle involves the high-speed rotation of a grinding wheel to grind the workpiece surface, thereby improving surface precision and smoothness.

Widely used in machinery manufacturing, aerospace, mold making, and automotive manufacturing, their excellent surface finishing capabilities and high-precision control make them indispensable equipment in modern industrial production.

Main Structure

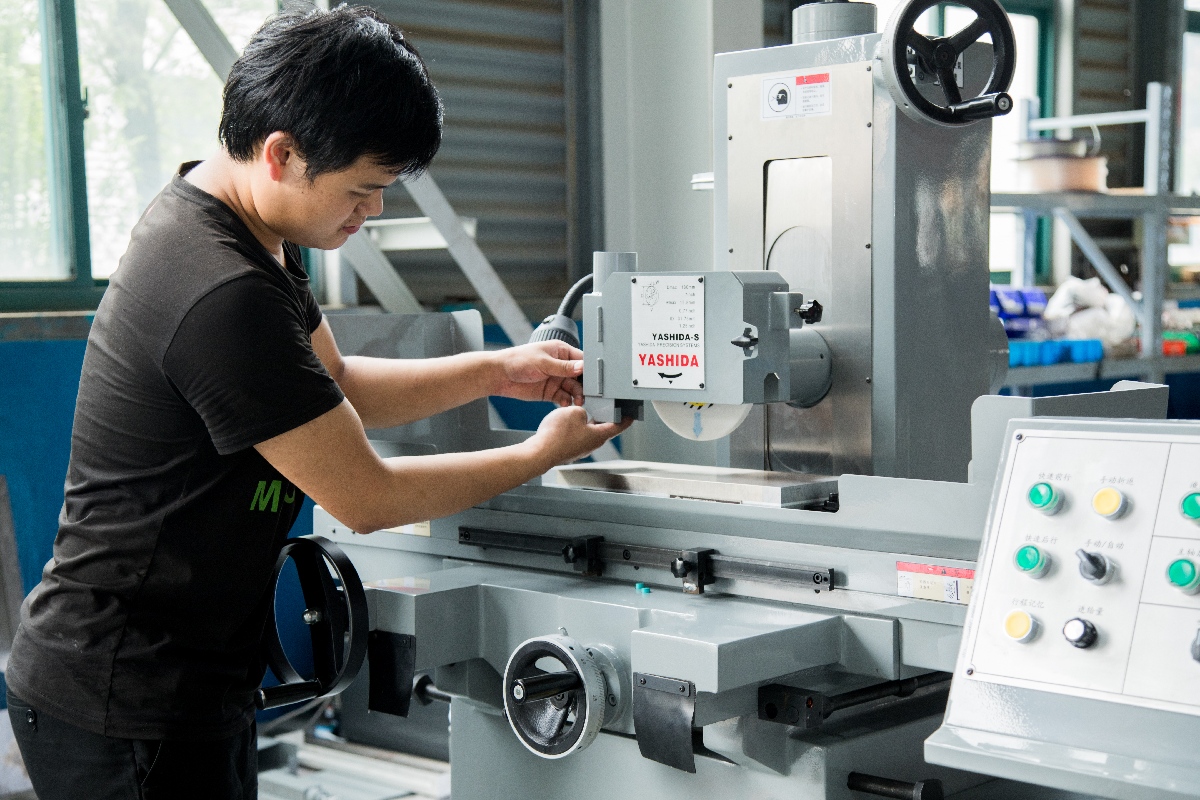

The main structure of a Surface Grinding Machine includes the bed, worktable, grinding wheel head, grinding wheel, headstock, tailstock, hydraulic system, electrical system, and guideway system.

The bed is the foundation, supporting the weight of the entire machine tool and ensuring its stability and rigidity.

The machine bed is typically made of high-strength cast iron, possessing good vibration damping performance and thermal stability, providing a solid foundation for high-precision machining.

The worktable is a platform used to fix the workpiece, capable of reciprocating motion in the horizontal direction to perform grinding. It is usually equipped with an electromagnetic chuck for quick clamping.

The grinding wheel head is a component used to support the grinding wheel and can be finely adjusted vertically to accommodate workpieces of different thicknessesThe grinding wheel is the main grinding tool, driven by the grinding wheel spindle to rotate at high speed and grind the workpiece surface.

The headstock and tailstock are located at opposite ends of the worktable and are used to fix the workpiece, ensuring its stability during the grinding process.

The hydraulic system and electrical system provide power and control for the grinding machine, ensuring its normal operation. Common guideway systems for surface grinders include linear guideways and sliding guideways.

Linear guideways are characterized by high speed and high sensitivity, while sliding guideways have greater rigidity and load-bearing capacity.

Performance Analysis

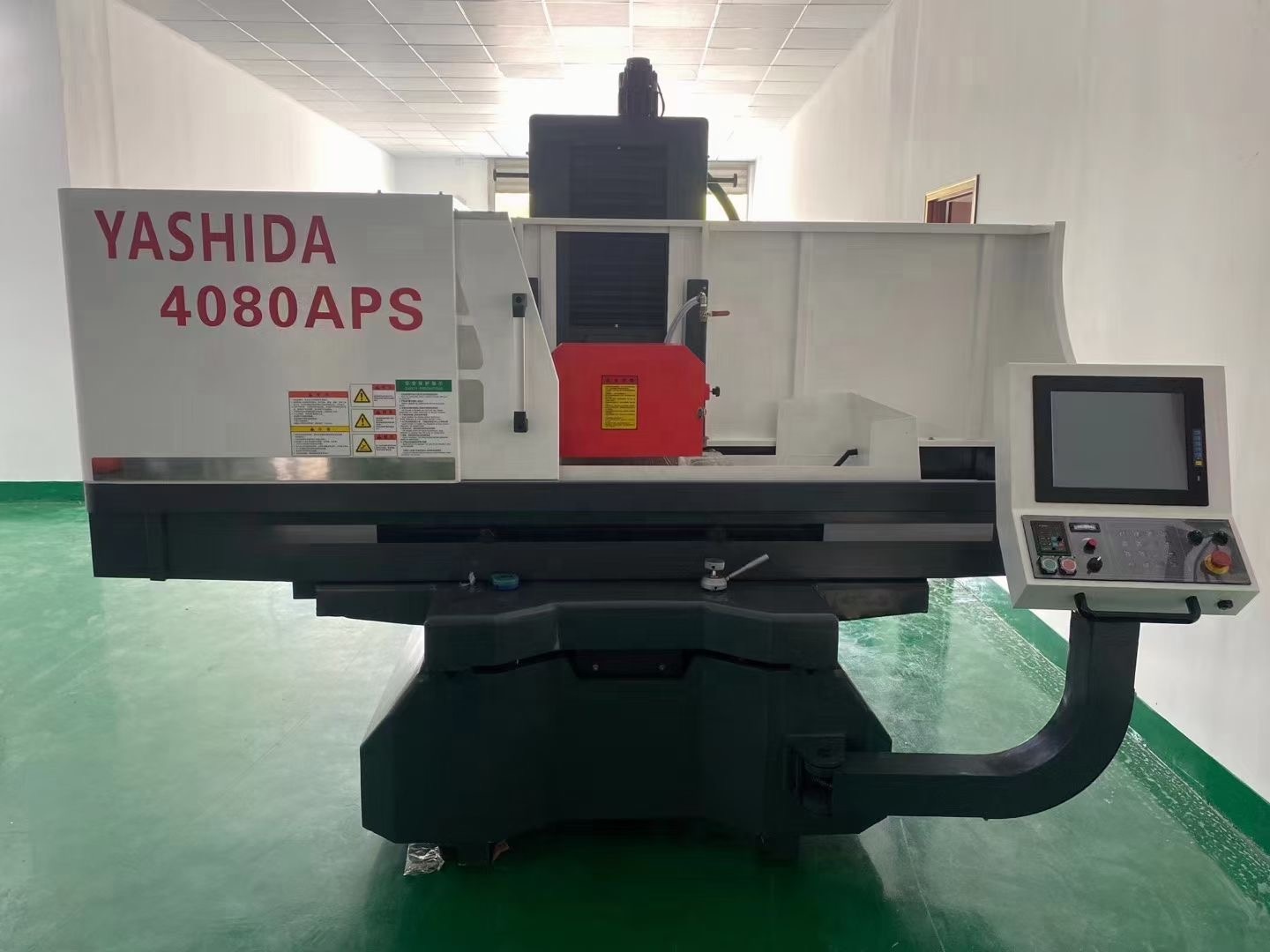

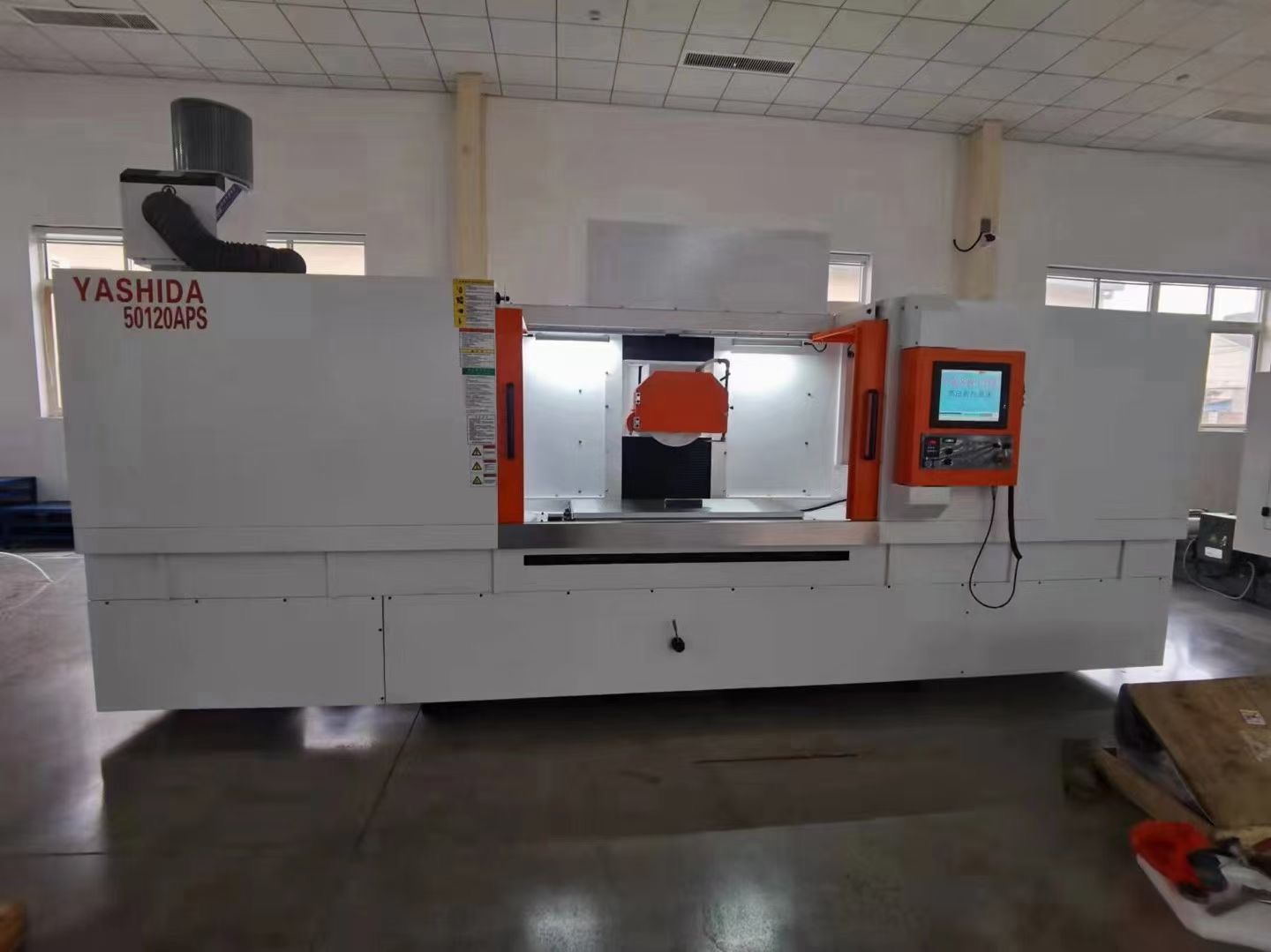

Machining Accuracy: Some surface grinders focus on high precision, such as the YASHIDA 4080APS CNC surface grinder, which can achieve: Flatness: ≤ 0.002 mm, Parallelism: ≤ 0.003 mm. Surface roughness can reach Ra 0.03–0.08.

Operation Process

The operation process mainly includes the following steps:

1. Preparation: First, check that all parts are intact and ensure the machine tool is free of abnormalities. Then, select a suitable grinding wheel according to the size and shape of the workpiece and install it on the grinding wheel head.

Simultaneously, fix the workpiece on the worktable and adjust the positions of the headstock and tailstock to maintain an appropriate grinding distance between the workpiece and the grinding wheel.

2. Grinding Process: Start the grinding machine to make the grinding wheel rotate at high speed. Operate the worktable to make the workpiece reciprocate horizontally, contacting the grinding wheel for grinding.

During grinding, the distance between the grinding wheel and the workpiece can be changed by adjusting the height of the grinding wheel head to ensure the grinding effect.

At the same time, closely monitor sparks, grinding sounds, and other phenomena during the grinding process to promptly detect and handle any abnormalities.

3. Grinding Completion: When the workpiece surface reaches the predetermined accuracy and finish requirements, stop the grinding machine and remove the workpiece.

Then turn off the machine tool power, clean the grinding shavings and coolant from the machine tool, and keep the machine tool clean and tidy.

Usage Process

During the use of a surface grinder, the following points should be noted:

1. Select the appropriate grinding wheel: Select the appropriate grinding wheel type and grit size according to the workpiece material and grinding requirements to ensure grinding effect.

2. Keep the machine tool clean: Regularly clean the grinding shavings and coolant from the machine tool to avoid affecting the normal operation of the machine tool and the grinding effect.

3. Pay attention to safety protection: When operating the grinder, follow safety procedures and wear protective equipment to avoid accidental injury.

4. Regular maintenance: Perform regular inspections and maintenance to ensure the normal operation and service life of the machine tool.

Conclusion

 Surface grinders are important equipment for achieving high-precision surface machining.

A thorough understanding of their structure and performance characteristics helps enterprises improve processing efficiency and make more scientific procurement decisions.
