Products Description
Machine Features:
★Left And Right Hydraulic Drive、Front And Rear Stepper Drive.
★High Precision Within 0.003mm.
★Super Quiet,Unique Hydraulic Technology ,Protect Staff And High Precision Operation.
★Save Manpower,Before And After Automatic Feed,Before And After The Motor Unique Memory Function ,Easy to Operate.
★This machine mainly uses the grinding wheel to grind various materials such as steel, cast iron and non-ferrous metals.Depending on the material and shape of the workpiece, different clamping and positioning methods can be used.
Product Paramenters
| Specifications |
|
| Unit | Yashida-450AH |
| Worktable | Table Working Area | mm | 150mm*450mm |
| Maximum Lateral Travel (Left and Right) | mm | 460 |
| Maximum Longitudinal Travel (Front and Back) | mm | 165 |
| Maximum Distance from Table Surface to Spindle Center | mm | 350 |
| Maximum Load Capacity of the Table | Kg | 200 |
| T-slots on the Table |
| 14×1 |
| Table Speed | m/min | 5-23 |
| Table Guideways |
| V-Smooth Sliding Guideway |
| Front and Rear Handwheel Feeding | one division | mm | 0.02 |
| One turn | mm | 4 |
| Automatic Front and Rear Feeding | mm | 0.1-8 |
| Fast Front and Rear Movement | mm | 700 |
| Grinding wheel | Grinding Wheel Dimensions (Outer Diameter × Width × Inner Diameter) | mm | 205×(6-20)×31.75 |
| Spindle Speed | 50HZ | R.p.m | 3000 |
Up and Down
Structure | Maximum Travel | mm | 420 |
| Up and Down Handwheel Feeding | one division | mm | 0.01 |
| One turn |
| 2 |
| Automatic Feed Amount | mm | / |
| Up and Down Fast Travel Amount | mm/min | 280 |
| Motor | Spindle Motor | HXP | 1.5×2 |
| Hydraulic Motor | H*P | 1×4 |
| Dust Extraction Motor | H*P | 1/2×2 |
| Water Pump Motor | H*P | 1/8×2 |
| Machine Tool Accuracy | Flatness Parallelism of the Machining Surface | mm | 0.003mm/300mm |
| Flatness of the Machining Surface | mm | 0.003mm/300mm |
| Surface Finish (or Surface Roughness) | mm | Ra0.25 |

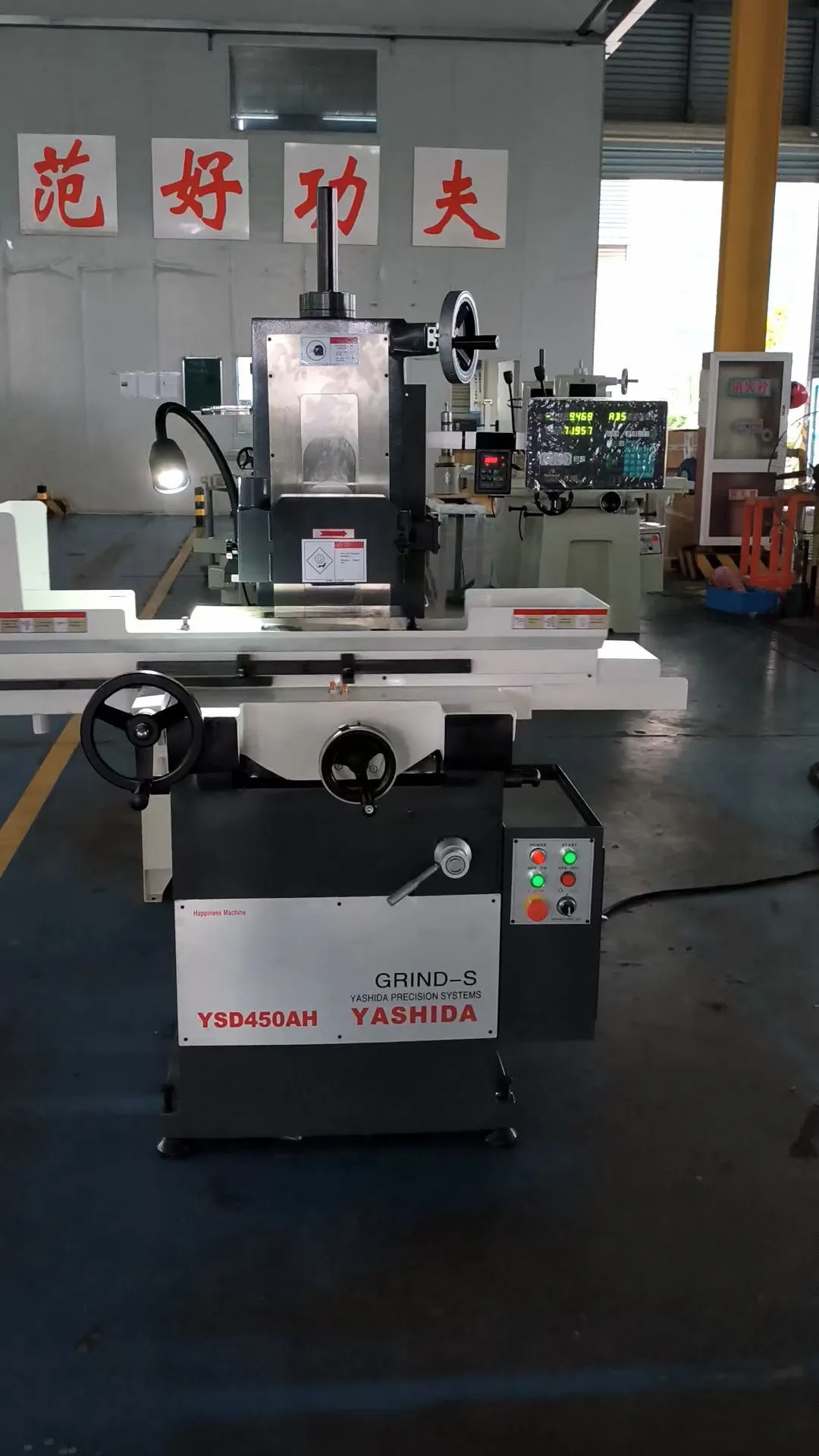

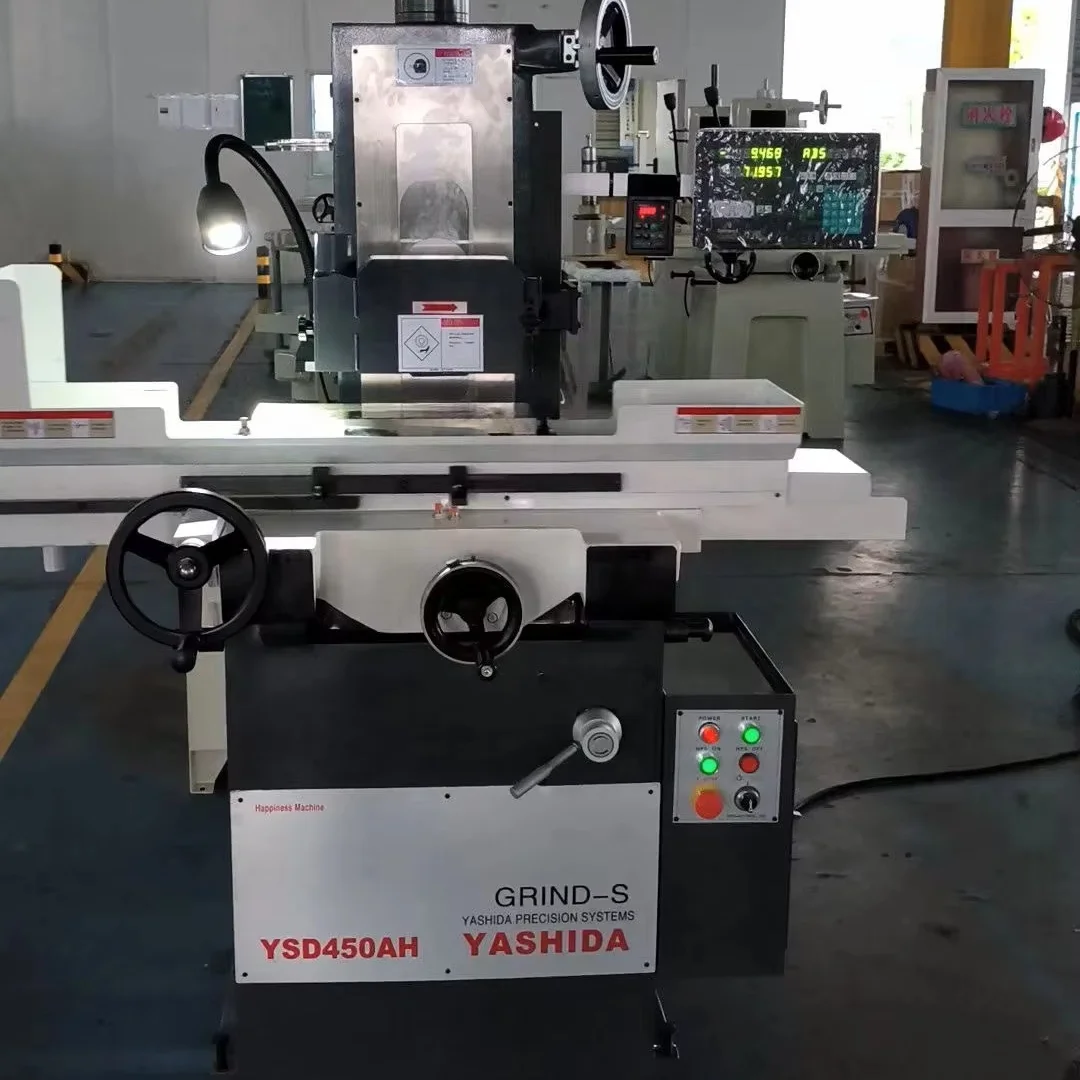

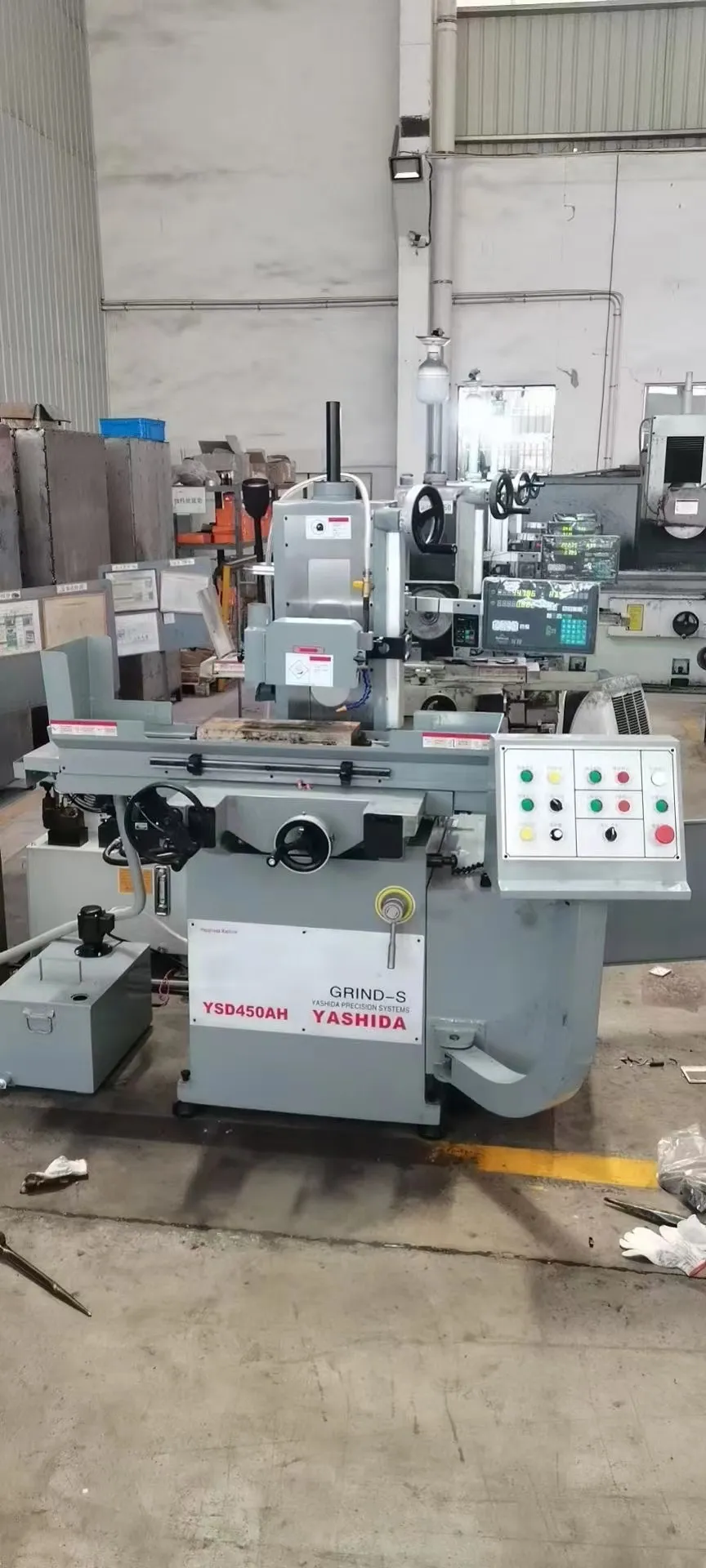

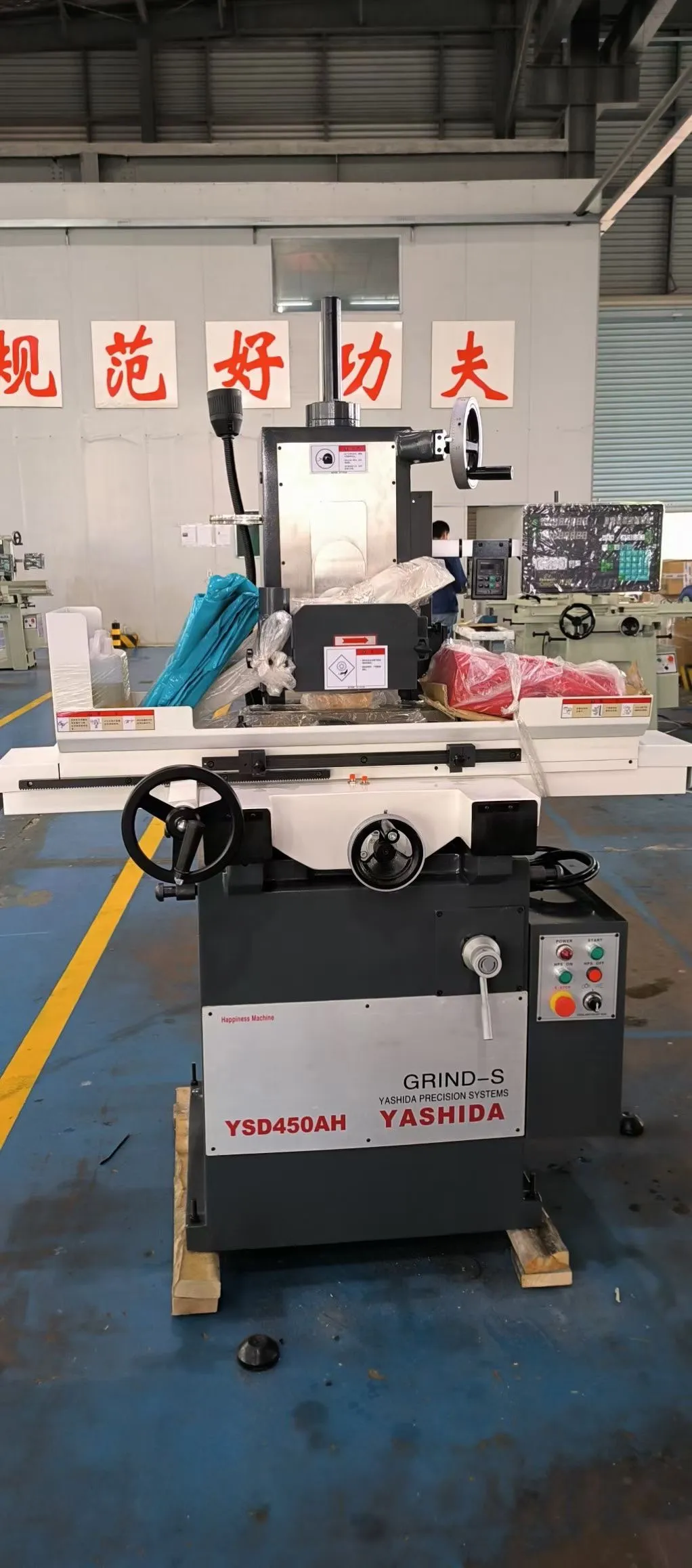

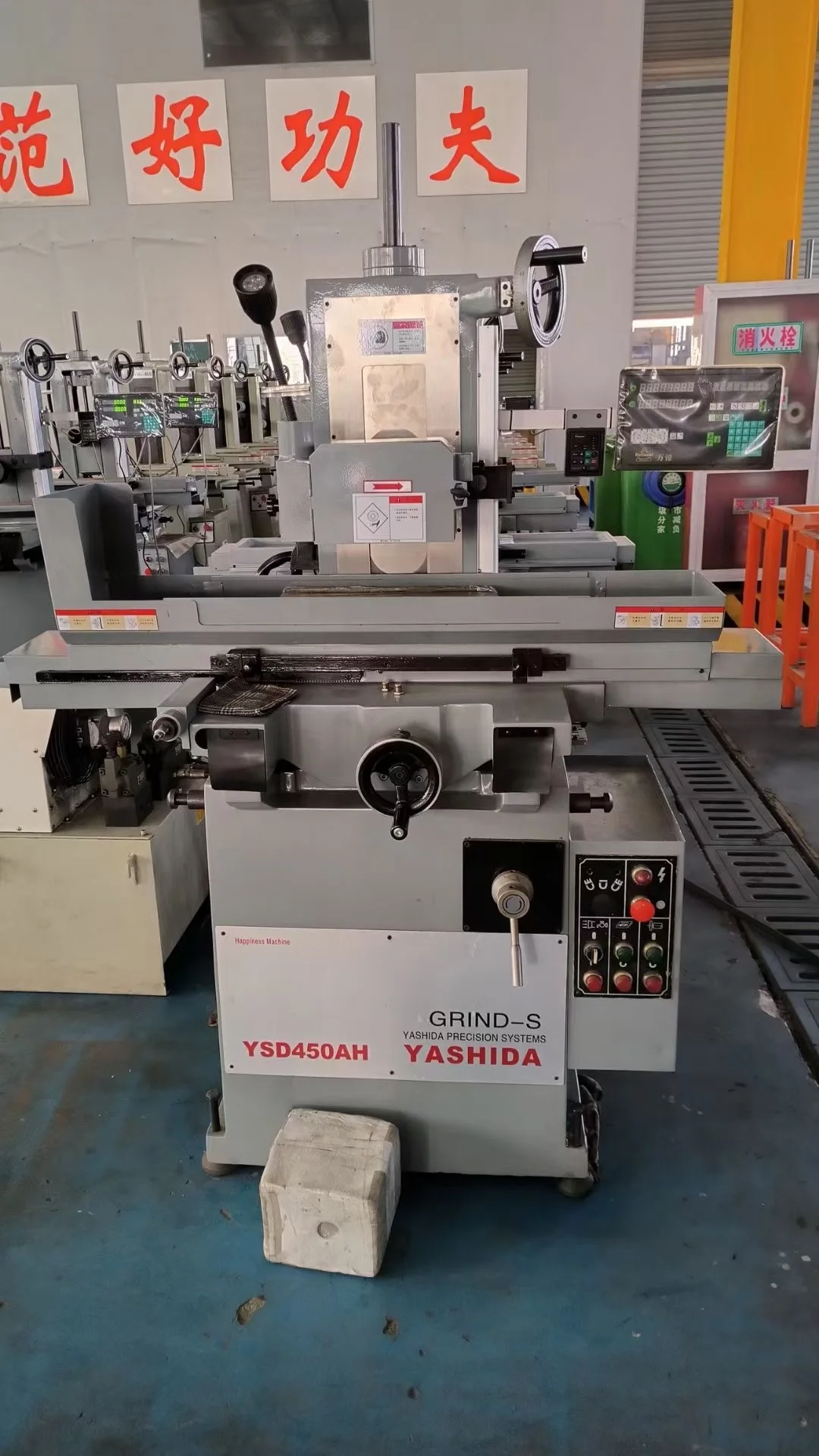

Detailed Photos
Machine tool structure and material
-The main structural parts are made of gray cast iron HT250, which has good strength, wear resistance, heat resistance and vibration reduction performance. Reasonable internal reinforcement enhances rigidity.
-X axis (workbench): hydraulic drive for reciprocating motion
-Y axis (front and back direction): "T" type screw rod is used for reciprocating motion to ensure accurate feed
-Z axis (upper and lower grinding heads): "T" type screw rod is used for reciprocating motion to ensure accurate feed
Machine tool spindle
-This machine tool adopts a Taiwan famous brand spindle, equipped with a wide column and a high-power spindle motor, with high
cutting force and the ability to maintain high precision. The spindle is filled with special high-grade lubricating grease and a
unique labyrinth seal protection design, ensuring a long service life.
Cooling system and lubrication system
- The grinding wheel of the grinding wheel frame is cooled by an independent cooling system. There are coolant nozzles on the grinding wheel and an independent cooling water tank at one end of the equipment, which has a good cooling effect.
- At one end of the grinding machine bed, there is an independent lubrication control oil tank. The lubrication system continuously lubricates the guide rails of the worktable to ensure smooth operation of the guide rails.
Motor and operation mode
-Using Taiwanese famous brand stepper motors, with few malfunctions and easy maintenance.
- Left and right hydraulic, front and rear automatic feeding, up and down manual control, flatness 0.003mm/300mm, finish Ra0.25
