introduction

surface grinders are widely used in industries such as mold making, automotive parts, aerospace, and precision machining.

When choosing a surface grinder, an important structural difference lies in the type of machine: single-column surface grinders and double-column (gantry) surface grinders.

While both types of machines are used to achieve high flatness and excellent surface quality, they differ significantly in structural design, rigidity, machining capabilities, and application scenarios.

Understanding these differences can help companies select the appropriate grinding equipment based on their actual production needs.

What is a single-column surface grinder?

A single-column surface grinder typically uses a one-sided column structure. The grinding head moves up and down along the column, while the worktable moves longitudinally and laterally.

This compact structure is ideal for machining small to medium-sized precision parts.

These grinders are relatively inexpensive, and their installation and maintenance are convenient, making them suitable for small and medium-sized manufacturers.

Due to their relatively simple structure, single-column surface grinders are widely used in mold workshops, tool rooms, and the precision parts manufacturing industry.

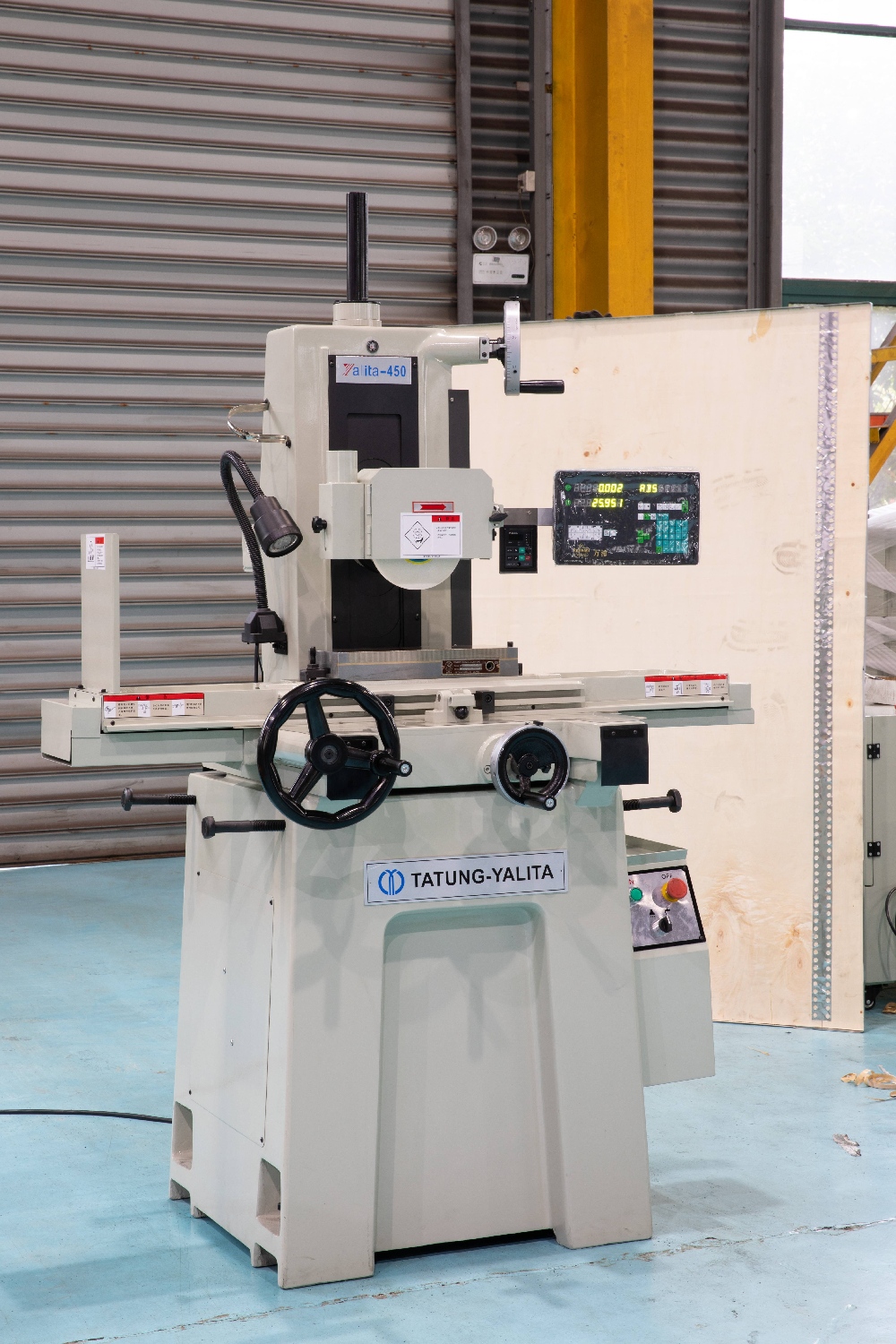

For example, the YASHIDA 450 precision Manual surface grinder, through its high-rigidity structural design and precision guideway system, improves the machine's operational stability and machining accuracy, maintaining stable grinding results during long-term production.

What is a Twin-Column Surface Grinding Machine?

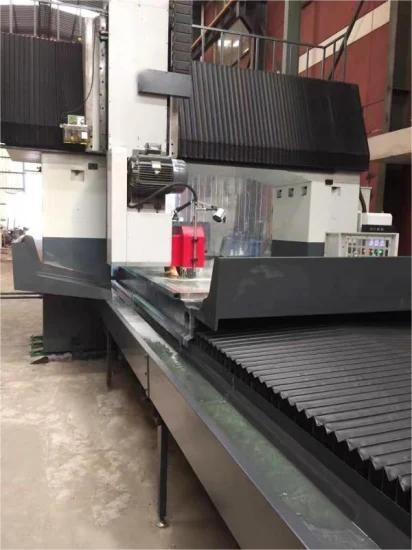

A twin-column surface grinding machine, also known as a gantry surface grinding machine, consists of two columns and a crossbeam, forming a stable gantry frame structure. The grinding head moves along the crossbeam.

This structure significantly improves the overall rigidity and load-bearing capacity of the machine tool, making it ideal for large workpieces and heavy-duty grinding operations.

Using this type of grinding machine offers better stability and extremely high mechanical rigidity, allowing you to complete workpiece machining on a sufficiently large worktable. Large workpieces are typically machined using this type of grinding machine.

In terms of applications, twin-column grinding machines are commonly used in the manufacture of various large molds, or for machining and manufacturing the machine tool itself.

The machining of parts for various heavy machinery, or the production of some major aerospace components, requires the use of this machine. Due to its large size, twin-column grinding machines are typically used in large manufacturing enterprises or specialized machining centers.

The core difference between single-column and double-column grinding machines lies in their structural rigidity and support methods.

Single-column grinding machines use a single column to support the grinding head, resulting in a compact structure, but this can be limiting when machining very large workpieces.

Double-column grinding machines, on the other hand, use two columns and a crossbeam to form a bridge-like structure, which distributes grinding force more evenly, reducing vibration and improving stability, making them ideal for large surface grinding.

How to Choose the Right Surface Grinding Machine

When choosing between a single-column and double-column surface grinder, the main factors are the workpiece size, the factory's machining accuracy requirements, and the production scale.

For most mold making and precision parts machining companies, single-column CNC surface grinders achieve a good balance between accuracy, cost, and floor space.

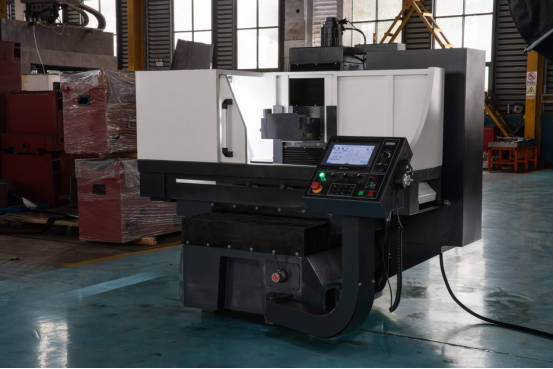

Like the YASHIDA 525CNC surface grinder, its high-rigidity structural design, precision guideways, and stable motion system provide customers with stable and reliable grinding capabilities.

For machining large molds or heavy mechanical parts, twin-column surface grinders offer higher rigidity and machining stability.

Both single-column and twin-column surface grinders play important roles in modern manufacturing. Single-column grinders are more suitable for machining precision parts and molds, while twin-column grinders are better suited for machining large and heavy workpieces.

Understanding the structural differences between the two types of machine tools helps companies make more informed decisions when selecting equipment, thereby improving production efficiency and ensuring long-term machining accuracy.
