Grinding Wheel Selection for Surface Grinding Machines

2026-03-16 14:42:36

Introduction

In surface grinding, the grinding wheel is a crucial tool determining machining efficiency, surface quality, and dimensional accuracy.

Even high-end surface grinders cannot achieve optimal performance if the grinding wheel is not selected correctly.

Correctly selecting a grinding wheel requires comprehensive consideration of multiple factors, including workpiece material, grinding conditions, surface quality requirements, and machine tool performance.

Only by properly matching these factors can stable grinding results be achieved and the service life of both the grinding wheel and the machine tool extended.

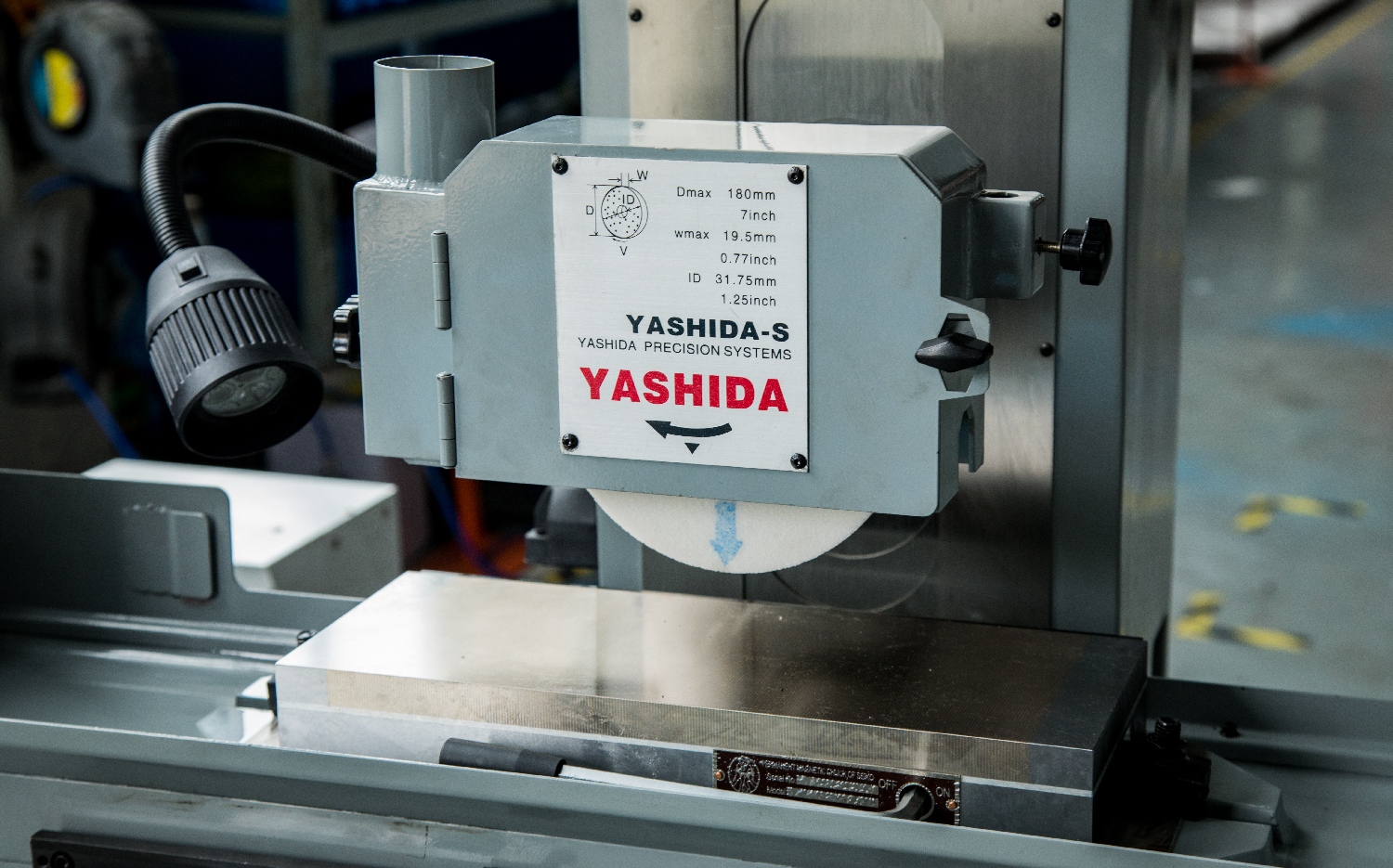

High-Precision Grinding Machine like the YASHIDA surface grinder has advantages in structural stability and machining accuracy, but proper grinding wheel selection remains a crucial prerequisite for obtaining optimal grinding results.

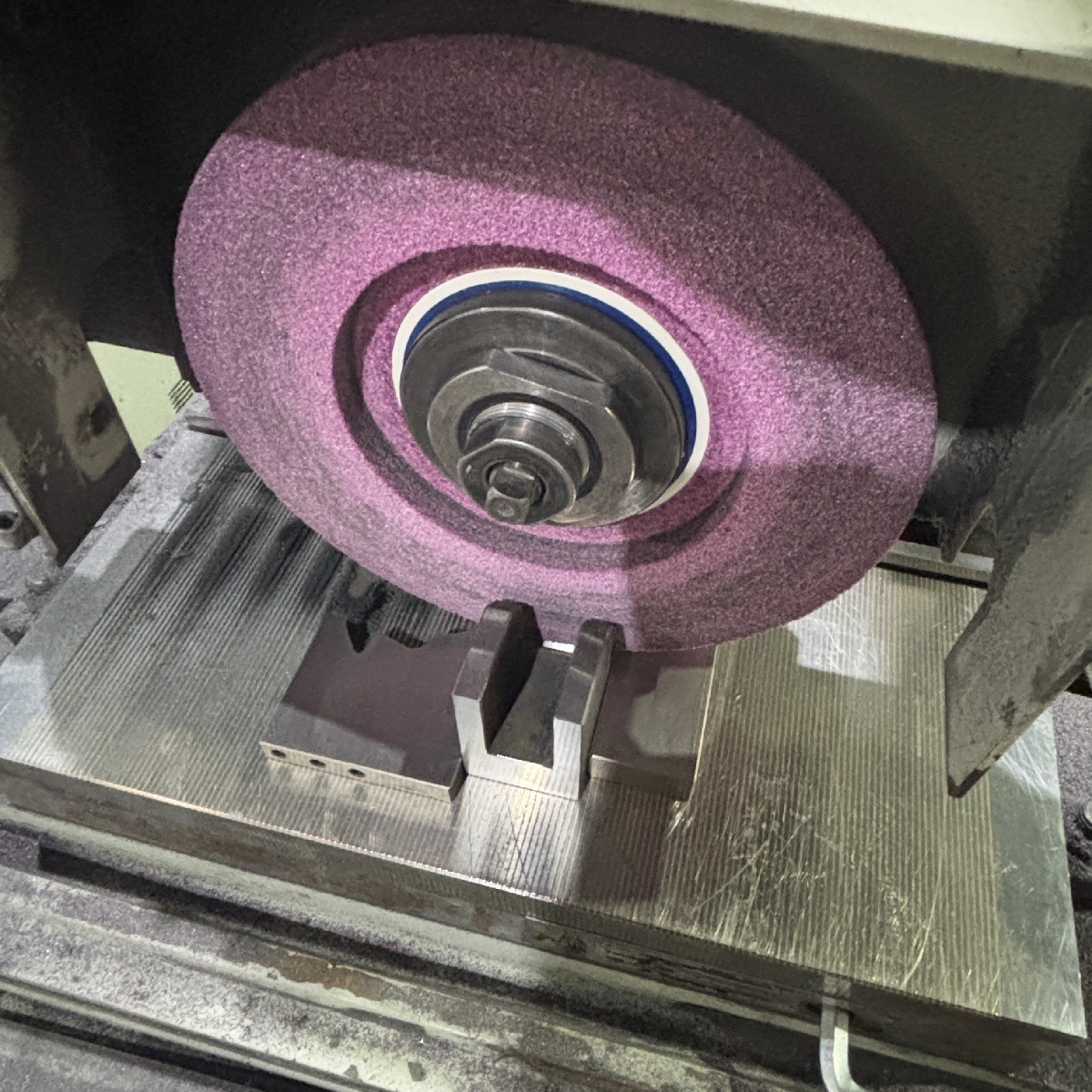

Basic Structure of Grinding Wheels

Grinding wheels typically consist of three main parts: abrasive grains, bonding agent, and porosity. The proper combination of these three components determines the grinding performance of the wheel.

The abrasive grains are the part that actually cuts. Common abrasives include corundum and silicon carbide,different abrasives are suitable for different materials.

The bonding agent is used to fix the abrasive grains and determines the strength and wear resistance of the grinding wheel. Ceramic bonding agents are widely used in surface grinding due to their high rigidity and good heat resistance.

The porous structure facilitates the entry of coolant into the grinding zone while simultaneously expelling grinding debris, thereby reducing grinding temperature and improving the surface finish.

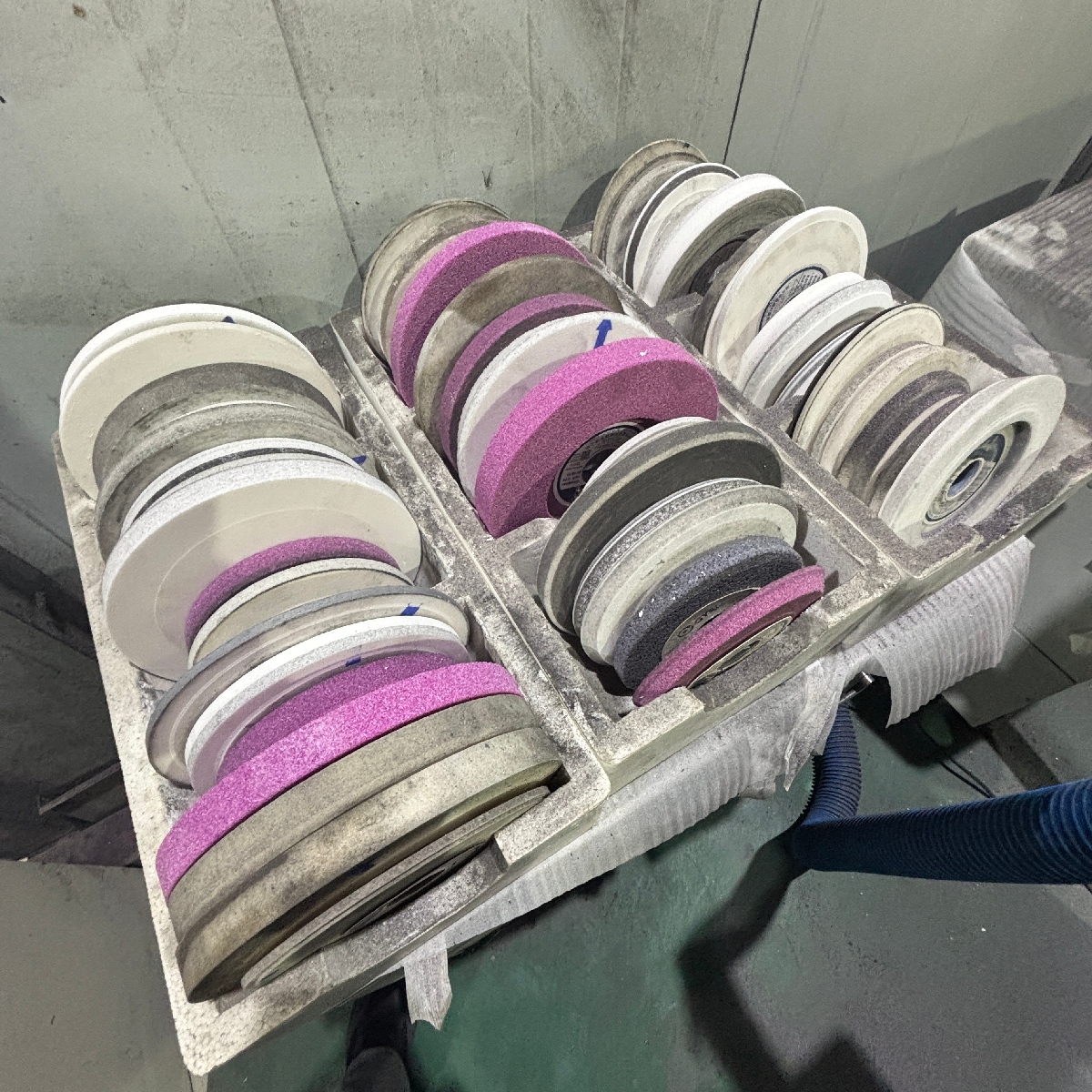

Abrasive Type Selection

Different materials require different types of abrasives.

Corundum wheels are commonly used for grinding steel and alloy materials because of their good wear resistance and stable cutting ability.

Silicon carbide wheels are more suitable for grinding cast iron, non-ferrous metals, and certain hard materials because their abrasive grains are sharper.

Choosing the appropriate abrasive type can improve material removal efficiency while reducing heat generation during grinding.

Grit Size Selection

Grit size has a significant impact on machining efficiency and surface quality.

Coarse-grit grinding wheels have a high material removal rate and are suitable for rough grinding.

Fine-grit grinding wheels achieve better surface finish and are suitable for finish grinding.

In Precision Surface Grinding, medium or fine-grit grinding wheels are typically chosen to strike a balance between machining efficiency and surface quality.

A stable grinding machine can fully utilize the advantages of fine-grit grinding wheels to achieve high-quality surface finishes.

Bond Material and Wheel Hardness

The bond material and wheel hardness determine the abrasive grain retention capacity and wear pattern.

Harder grinding wheels retain abrasive grains more firmly and are suitable for machining softer materials.

Softer grinding wheels more easily detach worn abrasive grains, exposing new, sharp grains, and are suitable for machining harder materials.

Appropriate wheel hardness selection can prevent wheel clogging or dulling and maintain stable grinding results.

Grinding Wheel Selection and Machine Tool Performance Matching

Grinding wheel selection also needs to consider the stability of the machine tool itself. High-precision grinding machines typically have better vibration resistance and more stable table movement, allowing the grinding wheel to achieve better grinding performance.

For example, YASHIDA surface grinders employ a high-rigidity machine tool structure and a precision guideway system to ensure smooth table movement, thereby providing a stable grinding environment for high-performance grinding wheels and resulting in more consistent surface finish.

Conclusion

Correct wheel selection is a crucial factor in achieving superior grinding results. Abrasive type, grit size, bonding agent, and wheel hardness all affect processing efficiency and surface quality.

Combining suitable grinding wheels with stable and reliable equipment can significantly improve processing efficiency, extend wheel life, and ensure grinding accuracy.

Appropriate grinding wheel selection not only improves production efficiency but also ensures higher standards of product surface quality.
