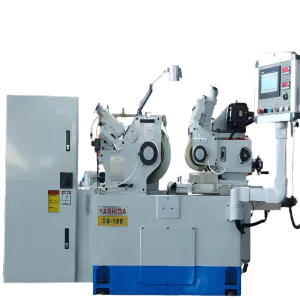

A centerless external grinding machine with CNC control is designed for high‑precision cylindrical grinding of workpieces without the need for centers or chucks. The workpiece is supported between a regulating wheel and a grinding wheel, resting on a work rest blade. This configuration allows continuous, high‑throughput machining, making it well suited for mass production of shafts, pins, bushings, and similar components.The CNC system provides precise control of wheel positioning, feed rates, infeed amounts, and dressing cycles. Operators can store, modify, and recall grinding programs for different part types, reducing setup time and ensuring repeatable quality. Axes such as the grinding wheel slide, regulating wheel slide, and sometimes the work rest adjustment are servo‑driven and controlled via the CNC, allowing micron‑level accuracy in diameter and geometry.The machine can operate in through‑feed or in‑feed (plunge) grinding modes. In through‑feed grinding, the workpiece is fed axially between the wheels and exits on the opposite side, ideal for parts with a constant diameter along their length. In in‑feed grinding, the part is located in a fixed position while the grinding wheel plunges radially, suitable for components with shoulders, steps, or complex profiles. CNC interpolation enables precise control of profiles and tapers.A rigid machine bed, typically made of cast iron or a composite structure, provides stability and vibration damping. Precision spindle assemblies for the grinding and regulating wheels ensure smooth rotation at controlled speeds. The regulating wheel, with adjustable inclination and speed, governs the workpiece rotation and feed rate, which is critical for surface finish and roundness. The grinding wheel, often made of conventional abrasives or superabrasives such as CBN or diamond, is dressed using an automatic CNC‑controlled dresser to maintain shape and cutting performance.The control interface usually features an industrial panel with color display, soft keys, and possibly a touch screen. User‑friendly software assists in entering part parameters, grinding sequences, and correction values. On‑screen diagnostics, alarm messages, and maintenance reminders support reliable operation and reduced downtime.To ensure quality, the machine may be equipped with in‑process gauging systems and automatic size compensation. These systems measure the workpiece diameter during grinding and send feedback to the CNC, which adjusts the infeed to keep dimensions within tight tolerances. Additional options can include automatic loading and unloading devices, magazine or hopper feeders, and robotic interfaces for integration into production lines.Safety enclosures, interlocked doors, coolant systems with filtration, and mist extraction are standard features to protect the operator and maintain a clean working environment. Overall, a CNC centerless external grinding machine combines high productivity with consistent precision, making it an essential solution for modern manufacturing where tight tolerances, fine surface finishes, and efficient production are required.
